SVP Aerospace
SVP Aerospace SCDA Duplexer Bracket
Product Code:
SCDA
Condition:
New
Weight:
4.50 KGS
Width:
29.15
(cm)
Height:
12.45
(cm)
Depth:
36.55
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

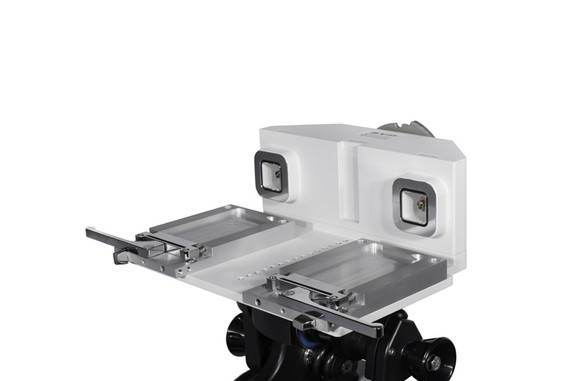

SVP Aerospace has designed the Duplexer bracket with double head. This bracket allows an easy and quick installation of two pieces of equipment, that can be installed near the antenna using just one tripod.
With this duplexer it is possible to connect two transmitters, two receivers or one receiver and one transmitter. This device is available for whatever frequency is needed.
It can be used for up-converters or down-converters, in which case they will share the same tripod and same antenna.

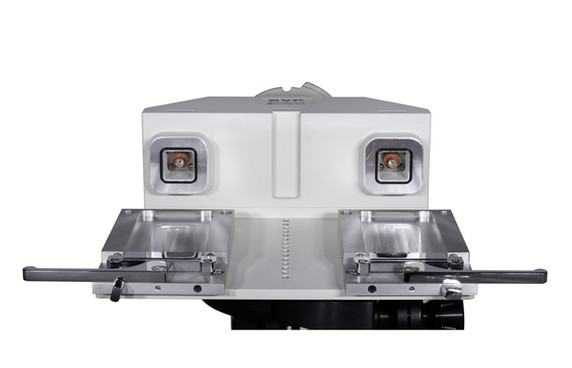

The bracket has two clasps, one for each piece of equipment, to prevent unwanted manipulation.
| SPECIFICATIONS | |
| Frequency Range | 2 GHz Band: 2.0 – 2.1 GHz / 2.23 – 2.38 GHz 6 GHz Band: 6.3 – 6.5 GHz / 6.63 – 6.8 GHz 7 GHz Band: 6.80 – 6.95 GHz / 7.15 – 7.30 GHz 10 GHz Band: 10.20 – 10.35 GHz / 10.50 – 10.65 GHz 13 GHz Band: 12.75 – 12.90 GHz / 13.05 – 13.25 GHz *other frequency ranges under request |
| Insertion Loss | 1 dB typ (1.5 dB max) |
| Material | Aluminum |
| Weight | 4.5 kg |
| Size | Width: 291.5 mm Height: 124.5 mm Depth: 365.5 mm |
