SVP Aerospace
SVP Aerospace RTC-04 Remote Control
Product Code:
RTC-04
Condition:
New
Weight:
0.46 KGS
Width:
14.70
(cm)
Height:
38.00
(cm)
Depth:
16.10
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

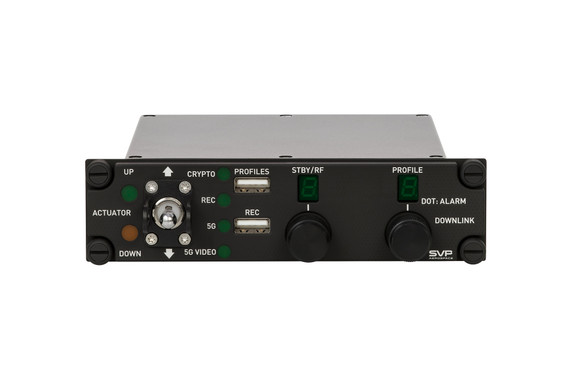

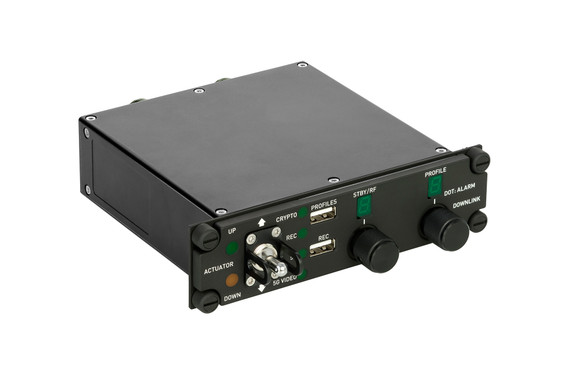

The RTC-04 is a compact lightweight remote control for SVP UDT-04 microwave systems. It can easily configure and control different SVP transmitters, 5G antenna bidirectional radio and the helicopter actuator arm.
In the specific case of the helicopter, the antenna actuator is deployed and stowed using the Up/Down Switch in the front panel, which also shows two LED indicators for actuator status.
It allows the selection of different profiles and output power levels. It can also be used for video recording on an USB drive.
When used in combination with 5G antenna, it allows as the configuration of the operation mode of 5G antenna (Data transmission or video backup).
| SPECIFICATIONS | |
| Remote Control | |
| Remote control for | UDT-04 |
| Actuator Arm/Altimeter Connector | Not available – Coming soon |
| Transmitter/Dimmer Connector | Not available – Coming soon |
| DC input | Powered by UDT-04 |
| Functions | Profiles Selection RF Output Power Video Recording Encrytion Control Actuator Arm UP/DOWN Control 5G Antenna operation control |
| Front Panel | NVIS Compatible |
| Black Background | Not available – Coming soon |
| Lettering and tracings | 0–5 Volts |
| Standard Size | Width: 146.72 mm, Depth: 161 mm, Height: 37.96 mm |
| Weight | 460 g |
5 customers are viewing this product
Details
The RTC-04 is a compact lightweight remote control for SVP UDT-04 microwave systems. It can easily configure and control different SVP transmitters, 5G antenna bidirectional radio and the helicopter actuator arm.
In the specific case of the helicopter, the antenna actuator is deployed and stowed using the Up/Down Switch in the front panel, which also shows two LED indicators for actuator status.
It allows the selection of different profiles and output power levels. It can also be used for video recording on an USB drive.
When used in combination with 5G antenna, it allows as the configuration of the operation mode of 5G antenna (Data transmission or video backup).
| SPECIFICATIONS | |
| Remote Control | |
| Remote control for | UDT-04 |
| Actuator Arm/Altimeter Connector | Not available – Coming soon |
| Transmitter/Dimmer Connector | Not available – Coming soon |
| DC input | Powered by UDT-04 |
| Functions | Profiles Selection RF Output Power Video Recording Encrytion Control Actuator Arm UP/DOWN Control 5G Antenna operation control |
| Front Panel | NVIS Compatible |
| Black Background | Not available – Coming soon |
| Lettering and tracings | 0–5 Volts |
| Standard Size | Width: 146.72 mm, Depth: 161 mm, Height: 37.96 mm |
| Weight | 460 g |
