SVP Aerospace
SVP Aerospace RTC-03 Remote Control
Product Code:
RTC-03
Condition:
New
Weight:
0.46 KGS
Width:
14.70
(cm)
Height:
38.00
(cm)
Depth:
16.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The RTC-03 is a compact lightweight remote control for SVP microwave systems. It can easily configure and control different SVP transmitters and the helicopter actuator.

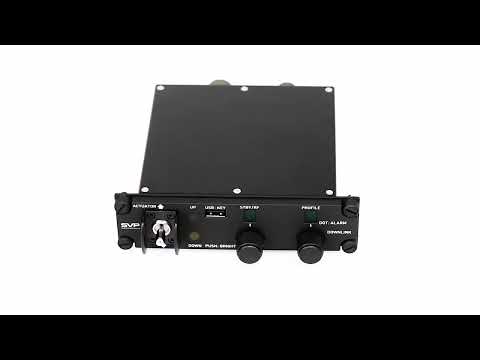

In the specific case of the helicopter, the antenna actuator is deployed and stowed using the Up/Down Switch in the front panel, which also shows two LED indicators for actuator status.
| SPECIFICATIONS | |
| Remote Control | |
| Remote control for | UDT-04, UDT-4K, HDT-04 and HDT-02 |

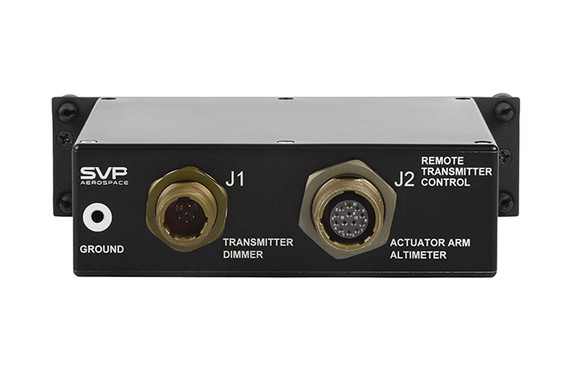

| Connector | Transmitter: D38999/24WA35PN (Amphenol) Actuator: D38999/24WB35SN (Amphenol) |
| Control | Via RS 485 |
| DC input | +9 to +36 V DC supplied by the transmitter |
| Functions | Standby Mode RF ON/OFF Output Power Level Profile Selection Actuator UP/DOWN |
| Front Panel | NVIS compatibility via External Dimmer. In accordance with class 1-NVIS Green B, TYPE VII of MIL-DTL-7788 |
| Black Background | FED STD 595 37038 |
| Lettering and tracings | White colour FED STD 595 n.37925 |
| Standard Size | Width: 146.7mm, Depth: 160mm, Height: 37.96m |
| Weight | 460 g |
5 customers are viewing this product
Details
The RTC-03 is a compact lightweight remote control for SVP microwave systems. It can easily configure and control different SVP transmitters and the helicopter actuator.
In the specific case of the helicopter, the antenna actuator is deployed and stowed using the Up/Down Switch in the front panel, which also shows two LED indicators for actuator status.
| SPECIFICATIONS | |
| Remote Control | |
| Remote control for | UDT-04, UDT-4K, HDT-04 and HDT-02 |
| Connector | Transmitter: D38999/24WA35PN (Amphenol) Actuator: D38999/24WB35SN (Amphenol) |
| Control | Via RS 485 |
| DC input | +9 to +36 V DC supplied by the transmitter |
| Functions | Standby Mode RF ON/OFF Output Power Level Profile Selection Actuator UP/DOWN |
| Front Panel | NVIS compatibility via External Dimmer. In accordance with class 1-NVIS Green B, TYPE VII of MIL-DTL-7788 |
| Black Background | FED STD 595 37038 |
| Lettering and tracings | White colour FED STD 595 n.37925 |
| Standard Size | Width: 146.7mm, Depth: 160mm, Height: 37.96m |
| Weight | 460 g |
