SVP Aerospace
SVP Aerospace RF Switch
Product Code:
RF-SWITCH
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

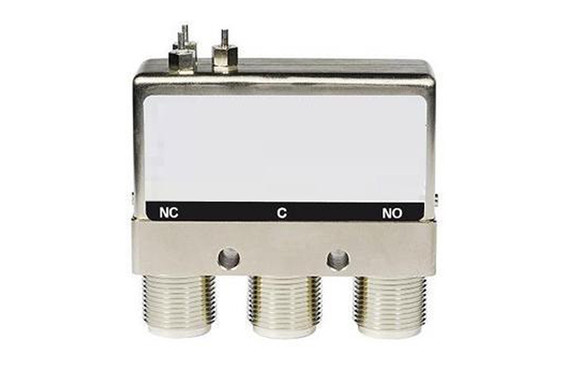

SVP can provide a high quality RF electromechanical coaxial switch for applications where it is required.
The RF-SWITCH is a double-throw through with standard voltage (DC 24 V) and N type connectors.
It can be used in Broadcast, wireless communication, microwave communication and airborne field.
This switch can be controlled through the RTC-01 remote controller and allows the user to select the antenna to be used from the helicopter.
| SPECIFICATIONS | |
| RF impedance | 50 Ohm |
| Operation voltage | 24 VDC / 140 mA |
| Switching Time | < 15 ms |
| Operating temperature | -40ºC to +85ºC |
| RF interface | N female |
| Power Supply | 12, 24 or 48V (To specify in the order) |
5 customers are viewing this product
Details
SVP can provide a high quality RF electromechanical coaxial switch for applications where it is required.
The RF-SWITCH is a double-throw through with standard voltage (DC 24 V) and N type connectors.
It can be used in Broadcast, wireless communication, microwave communication and airborne field.
This switch can be controlled through the RTC-01 remote controller and allows the user to select the antenna to be used from the helicopter.
| SPECIFICATIONS | |
| RF impedance | 50 Ohm |
| Operation voltage | 24 VDC / 140 mA |
| Switching Time | < 15 ms |
| Operating temperature | -40ºC to +85ºC |
| RF interface | N female |
| Power Supply | 12, 24 or 48V (To specify in the order) |
