SVP Aerospace

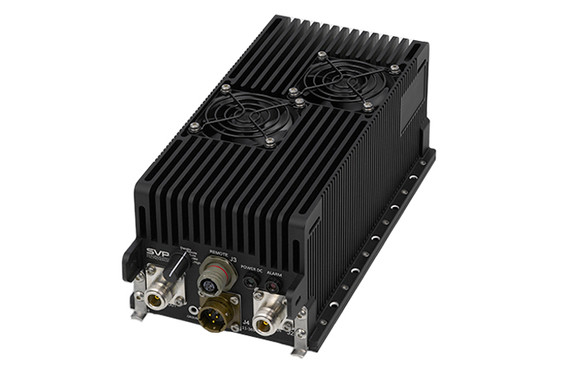

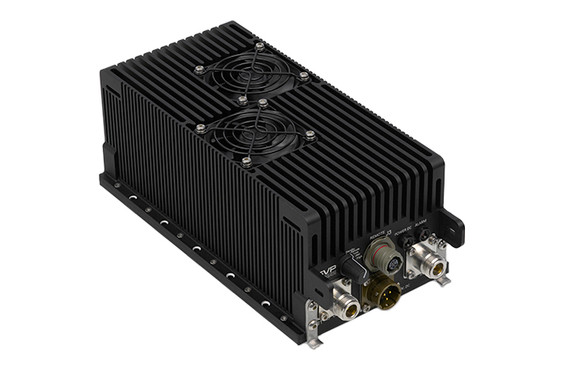

SVP Aerospace Power Amplifier
Product Code:
PA
Condition:
New
Weight:
2.50 KGS
Width:
25.10
(cm)
Height:
12.80
(cm)
Depth:
9.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The PA power amplifier expands the possibilities of COFDM digital links on the market, since it can work with most transmitter types. Low intermodulation and high reliability make this amplifier especially interesting for broadcast and airborne applications.
This Power Amplifier brings a new level of performance and reliability in high-power microwave transmissions. Packaged in a rugged aluminum housing, it is specifically designed to operate where a power amplifier resistant to severe environmental conditions is needed.
Main Features:
- Many frequency ranges available.
- Ultra Linear or Saturated Operation
- 3 Manually Switchable Power Levels
- Open and short protection on RF ports
- Power supply range: 9 to 36 VDC
- Reverse polarity protection
- Digitally controlled standby mode
| SPECIFICATIONS | |
| RF Stage | |
| Input level | 13 – 20 dBm with Automatic Level Control |
| Connectors | Power Supply: MS3112E12-3P Remote: D38999/24 RF: N-Female |
| Frequency range | 1.25 to 1.6 GHz for 10W 1.7 to 2.2 GHz for 10W 4.4 to 5 GHz for 10 W 5.0 to 5.3 GHz for 10W 6.4 to 7.0 GHz for 5W |
| Output Power | Manual: 3 different output power levels manually configurable Remote: 3 different output power levels remotely configurable via HDT Transmitter |
| Harmonics suppression | >60 dB typ |
| EVM | 2.5% typ, 8 MHz COFDM |
| I/O Impedance | N-female, 50 ohm |
| ACPR | -32 dBc typ, 8 MHz COFDM |
| Power Supply | |
| Power consumption | Depends on output power |
| Supply voltage | 9 to 36 VDC |
| Protection capabilities | |
| Protection capabilities | Reverse voltage Reverse RF Overvoltage Fan failure Overheat |
| Mechanical | |
| Mechanical dimensions | 251 x 127.5 x 94.6 mm Weight: 2.5 Kg |
| Environmental | |
| Operating temperature range | -20 to +50 ºC |
| Operating environment | RTCA/DO-160 compliant |
