SVP Aerospace

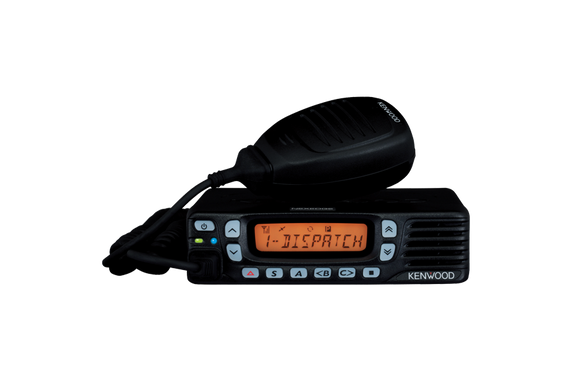

SVP Aerospace NX-820 Nexedge Airborne
Product Code:
NX-820
Condition:
New
Weight:
1.40 KGS
Width:
16.00
(cm)
Height:
4.30
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The NX-820 is a GPS and voice transmission system for orders, with digital modulation and encrypted transmission. This system features a maximum capacity of forty ports permitting various configurations.
Comprised of a Key Service Unit, expansion boards, electronic keysets and conventional single line telephones, the NX-820 offers a flexible control of telephone communications.
This product is used in Autotracking systems when it is required to transmit the position of the plane’s GPS at long distances for the automatic pointing of the receiver. It allows transmission at distances of more than 250 kilometers.
Features:
• 25 W
• Meets ETSI EN Standards
• 260 CH-GID
• 10 Character Alphanumeric Aliases
• Backlit LCD & Keys
• Function/Status LCD Icons
• Transmit/Busy/Call Alert/Warning LED
• Blue Function/Status LED
• On/Off Power Control
• 4 Up/Down Selectors
• With Speaker Audio
• Zone/CH Number Voice Announcement
• DB-15 Accessory Connector
• MIL-STD-810 C/D/E/F/G
• IP54 Water & Durst Intrusion
• Built-in GPS Receiver Models
• Magnetic GPS Antenna
| SPECIFICATIONS | |
| Frequency Range Type 1 | 400 – 470 MHz |
| Number of Channels | 260 |
| Channel Spacing Digital | 6.25 / 12.50 kHz |
| Operating Voltage | 13.2 VDC |
| Operating Temperature Range | -30º to 60ºC |
| Antenna Impedance | 50 Ohm |
| Dimensions (WxHxD) | 160 x 43 x 136 mm |
| Weight | 1.4 kg |
5 customers are viewing this product
Details
The NX-820 is a GPS and voice transmission system for orders, with digital modulation and encrypted transmission. This system features a maximum capacity of forty ports permitting various configurations.
Comprised of a Key Service Unit, expansion boards, electronic keysets and conventional single line telephones, the NX-820 offers a flexible control of telephone communications.
This product is used in Autotracking systems when it is required to transmit the position of the plane’s GPS at long distances for the automatic pointing of the receiver. It allows transmission at distances of more than 250 kilometers.
Features:
• 25 W
• Meets ETSI EN Standards
• 260 CH-GID
• 10 Character Alphanumeric Aliases
• Backlit LCD & Keys
• Function/Status LCD Icons
• Transmit/Busy/Call Alert/Warning LED
• Blue Function/Status LED
• On/Off Power Control
• 4 Up/Down Selectors
• With Speaker Audio
• Zone/CH Number Voice Announcement
• DB-15 Accessory Connector
• MIL-STD-810 C/D/E/F/G
• IP54 Water & Durst Intrusion
• Built-in GPS Receiver Models
• Magnetic GPS Antenna
| SPECIFICATIONS | |
| Frequency Range Type 1 | 400 – 470 MHz |
| Number of Channels | 260 |
| Channel Spacing Digital | 6.25 / 12.50 kHz |
| Operating Voltage | 13.2 VDC |
| Operating Temperature Range | -30º to 60ºC |
| Antenna Impedance | 50 Ohm |
| Dimensions (WxHxD) | 160 x 43 x 136 mm |
| Weight | 1.4 kg |
