SVP Aerospace

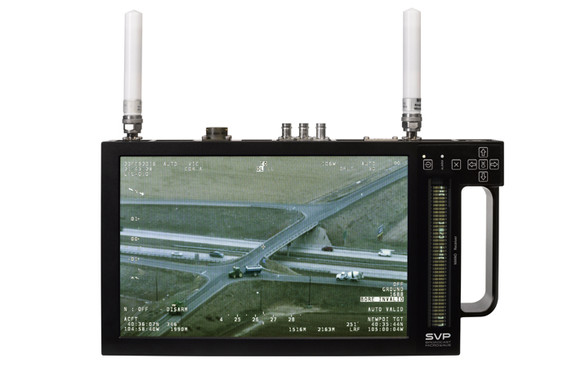

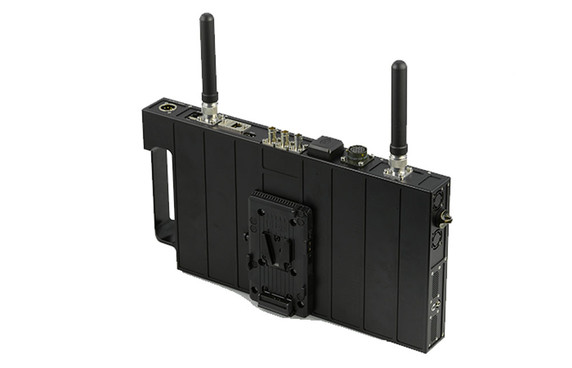

SVP Aerospace MANO HD Hand Held Receiver
Product Code:
MANO
Condition:
New
Weight:
2.80 KGS
Width:
42.00
(cm)
Height:
4.30
(cm)
Depth:
22.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The new MANO Receiver has been designed by SVP Aerospace to perform DVB-T2, DVB-T and ISDB-T demodulations.
It is an H.264 and MPEG-2 HD/SD professional broadcast quality decoder, based on NTT technology.
The video over IP optional output enables connectivity with PC via IP for monitoring of video or/and KLV Metadata with any Mission software.
Main Features:
• NTT H.264 compression technology.
• MRC Diversity 2
• Highest video quality up to: 1080p/60
• Autotracking control (with compass)
• Power supply: 11 – 36 V DC or V lock batteries.
• BISS-1 and BISS-E encryption.
• AES-128 and AES-256 encryption (optional).
• 13.3” sunlight readable screen
• Web Server interface
• Updatable via USB
• Anodized milled aluminum block
Applications:
• KLV Metadata monitoring compatible with Mission application.
• TS over IP for multicast or singlecast.
• High-performance decoder.
• Portable and/or test receiver.
• International operation: from 1.3 to 10.5 GHz (depending on the down-converter used).
| SPECIFICATIONS | |
| RF STAGE DVB-T2 AND DVB-T | |
| Frequency bands | 1.30 to 1.55 GHz 1.70 to 2.10 GHz 2.00 to 2.10 GHz 2.21 to 2.38 GHz 2.00 to 2.40 GHz 3.30 to 3.80 GHz 4.50 to 4.98 GHz 4.90 to 5.38 GHz 5.30 to 5.78 GHz 6.20 to 6.68 GHz 6.60 to 7.08 GHz 6.70 to 7.18 GHz |
| Diversity | 2 in DVB-T2 2 in DVB-T 2 in ISDB-T |
| Diversity Technique | MRC (Maximum Ratio Combining) in DVB-T2, DVB-T and ISDB-T |
| DEMODULATION | |
| DVB-T2 | COFDM 1K, 2K, 4k, 8k, 8_ext QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/4, 19/128, 1/8, 19/256, 1/16 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps |
| DVB-T | COFDM 2K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps |
| ISDB-T | COFDM 2K, 4K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6, 7, 8 MHz Max bitrate: 31 Mbps |
| DECODER | |
| H.264 – Profile | Baseline, Main, High, High 422 (supports 10-bit) |
| MPEG-2 – Profile | 422P@HL, MP@HL, 422P@ML, MP@ML Latency: 33ms |
| H.264 – Level | 4.1 – 4.2 |
| Audio decoder | MPEG-1 Layer I/II |
| H.264 – Latency | Low delay: 33 ms |
| VIDEO | |
| Inputs | 1 x ASI, Video over IP |
| Outputs | 3G-SDI, HD-SDI and SD-SDI |
| Formats | 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i (PAL) – 50 Hz 480i (NTSC) – 59.94 Hz |
| Audio Outputs | Embedded on SDI Speaker Headphones |
| AUDIO | |
| Speakers | 2 speakers |
| Headphones | 1 jack plug |
| DECRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES | AES-128 and AES-256 (optional) |
| POWER SUPPLY | |
| Batteries | V-mount at 12 V |
| DC input | 11 to 36 V DC |
| Autonomy | 5 hours (with max. brightness and powered by IDX DUO-C190 batteries) |
| DIMENSIONS | |
| Screen | 13.3 inch |
| Size | 420 x 225 x 43 mm |
| Weight | 2.8 kg (without battery) |
5 customers are viewing this product
Details
The new MANO Receiver has been designed by SVP Aerospace to perform DVB-T2, DVB-T and ISDB-T demodulations.
It is an H.264 and MPEG-2 HD/SD professional broadcast quality decoder, based on NTT technology.
The video over IP optional output enables connectivity with PC via IP for monitoring of video or/and KLV Metadata with any Mission software.
Main Features:
• NTT H.264 compression technology.
• MRC Diversity 2
• Highest video quality up to: 1080p/60
• Autotracking control (with compass)
• Power supply: 11 – 36 V DC or V lock batteries.
• BISS-1 and BISS-E encryption.
• AES-128 and AES-256 encryption (optional).
• 13.3” sunlight readable screen
• Web Server interface
• Updatable via USB
• Anodized milled aluminum block
Applications:
• KLV Metadata monitoring compatible with Mission application.
• TS over IP for multicast or singlecast.
• High-performance decoder.
• Portable and/or test receiver.
• International operation: from 1.3 to 10.5 GHz (depending on the down-converter used).
| SPECIFICATIONS | |
| RF STAGE DVB-T2 AND DVB-T | |
| Frequency bands | 1.30 to 1.55 GHz 1.70 to 2.10 GHz 2.00 to 2.10 GHz 2.21 to 2.38 GHz 2.00 to 2.40 GHz 3.30 to 3.80 GHz 4.50 to 4.98 GHz 4.90 to 5.38 GHz 5.30 to 5.78 GHz 6.20 to 6.68 GHz 6.60 to 7.08 GHz 6.70 to 7.18 GHz |
| Diversity | 2 in DVB-T2 2 in DVB-T 2 in ISDB-T |
| Diversity Technique | MRC (Maximum Ratio Combining) in DVB-T2, DVB-T and ISDB-T |
| DEMODULATION | |
| DVB-T2 | COFDM 1K, 2K, 4k, 8k, 8_ext QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/4, 19/128, 1/8, 19/256, 1/16 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps |
| DVB-T | COFDM 2K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps |
| ISDB-T | COFDM 2K, 4K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6, 7, 8 MHz Max bitrate: 31 Mbps |
| DECODER | |
| H.264 – Profile | Baseline, Main, High, High 422 (supports 10-bit) |
| MPEG-2 – Profile | 422P@HL, MP@HL, 422P@ML, MP@ML Latency: 33ms |
| H.264 – Level | 4.1 – 4.2 |
| Audio decoder | MPEG-1 Layer I/II |
| H.264 – Latency | Low delay: 33 ms |
| VIDEO | |
| Inputs | 1 x ASI, Video over IP |
| Outputs | 3G-SDI, HD-SDI and SD-SDI |
| Formats | 1080p – 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i – 50/59.94/60 Hz 720p – 23.98/24/25/29.97/30/50/59.94/60 Hz 576i (PAL) – 50 Hz 480i (NTSC) – 59.94 Hz |
| Audio Outputs | Embedded on SDI Speaker Headphones |
| AUDIO | |
| Speakers | 2 speakers |
| Headphones | 1 jack plug |
| DECRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES | AES-128 and AES-256 (optional) |
| POWER SUPPLY | |
| Batteries | V-mount at 12 V |
| DC input | 11 to 36 V DC |
| Autonomy | 5 hours (with max. brightness and powered by IDX DUO-C190 batteries) |
| DIMENSIONS | |
| Screen | 13.3 inch |
| Size | 420 x 225 x 43 mm |
| Weight | 2.8 kg (without battery) |
