SVP Aerospace

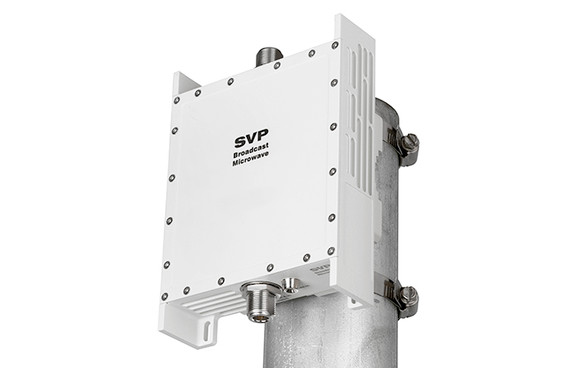

SVP Aerospace LNA-2GHz Low Noise Amplifier 2GHz
Product Code:
LNA-2GHz
Condition:
New
Weight:
1.00 KGS
Width:
13.40
(cm)
Height:
12.60
(cm)
Depth:
3.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP´s new low-noise amplifier, the LNA is designed for digital COFDM links and for high-performance analog links.
This device broadens the possibilities of the existing COFDM digital links in the market. It improves the noise figure of the digital receiver, increases its selectivity and compensates the cable losses between the antenna and the receiver. The excellent noise figure of the LNA increases the sensibility, and as a result the coverage and the reliability of the digital link.
Main features:
- Frequency range: 2.2-2.7 GHz.
- Designed to work in environments with lots of radiofrequency signals.
- High IP3.
- Excellent linearity is guaranteed.
- PHEMT technology is used.
- Very low noise figure.
- A LED informs about the status.
- Good input adaptation in amplifier.
- The device is fed through the output coax.
| SPECIFICATIONS | |
| Frequency range | 2.2 to 2.7 GHz |
| Noise figure | 0.9 dB typ. |
| Gain | > 25 dB |
| IP3 OUT | 33 dBm typ. |
| Input return loss | > 20 dB (by isolator) |
| Output return loss | 10 dB typ. |
| Power range | 10 to 30 VDC |
| DC Current | 250 mA |
| Number of cell filter | 5 |
| Static protection | Yes |
| Size | 134 x 126 x 30 mm |
| Temperature range | -10 to 55 ºC |
| Weight | 1 kg |
5 customers are viewing this product
Details
SVP´s new low-noise amplifier, the LNA is designed for digital COFDM links and for high-performance analog links.
This device broadens the possibilities of the existing COFDM digital links in the market. It improves the noise figure of the digital receiver, increases its selectivity and compensates the cable losses between the antenna and the receiver. The excellent noise figure of the LNA increases the sensibility, and as a result the coverage and the reliability of the digital link.
Main features:
- Frequency range: 2.2-2.7 GHz.
- Designed to work in environments with lots of radiofrequency signals.
- High IP3.
- Excellent linearity is guaranteed.
- PHEMT technology is used.
- Very low noise figure.
- A LED informs about the status.
- Good input adaptation in amplifier.
- The device is fed through the output coax.
| SPECIFICATIONS | |
| Frequency range | 2.2 to 2.7 GHz |
| Noise figure | 0.9 dB typ. |
| Gain | > 25 dB |
| IP3 OUT | 33 dBm typ. |
| Input return loss | > 20 dB (by isolator) |
| Output return loss | 10 dB typ. |
| Power range | 10 to 30 VDC |
| DC Current | 250 mA |
| Number of cell filter | 5 |
| Static protection | Yes |
| Size | 134 x 126 x 30 mm |
| Temperature range | -10 to 55 ºC |
| Weight | 1 kg |
