SVP Aerospace

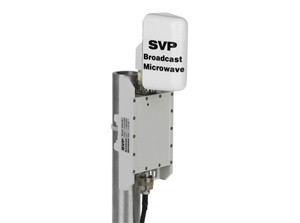

SVP Aerospace Linear Polarization Sector Antennas 2 & 3GHz 6dBi
Product Code:
AS-X06
Condition:
New
Weight:
0.10 KGS
Width:
8.60
(cm)
Height:
5.00
(cm)
Depth:
8.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AS-206 & AS-306 are linear polarization sector antennas, especially interesting for camera links. They work in the 2 GHz (AS-206) and 3 GHz (AS-306) bands. These antennas are commonly used in the receiver site. Their low weight and the N male connector make the direct connection to the down-converter possible, no cables are needed and cable losses in the receiver site are minimized.
These antennas offer a wide coverage area with 6 dBi gain and a 180º horizontal and 40º vertical beamwidth. This wide radiation pattern makes possible for the transmitter to move freely in the coverage area without the need to steer the receiver antenna.
| SPECIFICATIONS | |
| AS-206 AND AS-306 ANTENNAS | |
| Frequency band | AS-206: 2.0 to 2.7 GHz* AS-306: 3.0 to 3.7 GHz |
| Bandwidth | 700 MHz |
| Gain | 6 dBi |
| Radiation pattern | 40ºV, 180ºH |
| Polarization | Vertical |
| VSWR | Typ <1.3 |
| Connector | N male |
| Size | 50 × 86 × 80 mm |
| Weight | 70 g |
5 customers are viewing this product
Details
The AS-206 & AS-306 are linear polarization sector antennas, especially interesting for camera links. They work in the 2 GHz (AS-206) and 3 GHz (AS-306) bands. These antennas are commonly used in the receiver site. Their low weight and the N male connector make the direct connection to the down-converter possible, no cables are needed and cable losses in the receiver site are minimized.
These antennas offer a wide coverage area with 6 dBi gain and a 180º horizontal and 40º vertical beamwidth. This wide radiation pattern makes possible for the transmitter to move freely in the coverage area without the need to steer the receiver antenna.
| SPECIFICATIONS | |
| AS-206 AND AS-306 ANTENNAS | |
| Frequency band | AS-206: 2.0 to 2.7 GHz* AS-306: 3.0 to 3.7 GHz |
| Bandwidth | 700 MHz |
| Gain | 6 dBi |
| Radiation pattern | 40ºV, 180ºH |
| Polarization | Vertical |
| VSWR | Typ <1.3 |
| Connector | N male |
| Size | 50 × 86 × 80 mm |
| Weight | 70 g |
