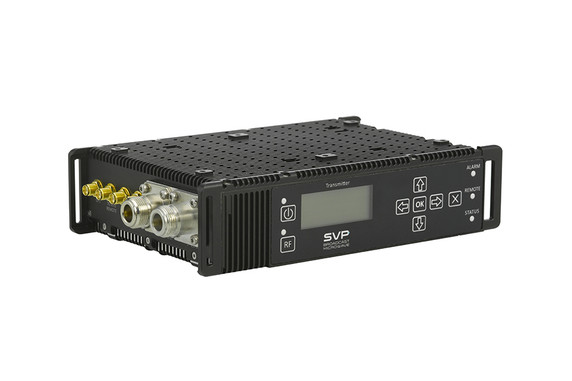

SVP Aerospace HDT-02 Multiband H.264 Wireless Camera Video Transmitter
Product Code:
HDT-02
Condition:
New
Weight:
1.00 KGS
Width:
12.40
(cm)
Height:
4.80
(cm)
Depth:
20.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The HDT-02 is the new H.264 multiband-multifunction transmitter developed by SVP Aerospace. It features H.264 – 4:2:2 encoding for HD and SD signals.
This small transmitter performs DVB-T, DVB-T2, DVB-S (optional) and DVB-S2 (optional) modulations. An L band IF output is available which enables to use the transmitter as a satellite encoder and modulator unit. It allows simultaneous terrestrial and satellite transmission and the ultra-wide frequency band is from 1.0 to 6.4 GHz.
The exceptional specifications of this transmitter make the HDT-02 suitable for: DNSG, as high-performance encoder, camera transmitter (using AB or V mount clamping system, optional), helicopter transmitter (with an amplifier) and operation in different countries (frequency range operation from 1 to 6,4 GHz with one transmitter alone).
Main Features:
- Ultra Wide RF: 1 to 6.4 GHz.
- Terrestrial and satellite transmission.
- Highest video quality available: 1080p/50, 1080p/60, 3G-SDI.
- Lowest Delay in H.264: 33 ms.
- Power supply range: 8 – 36 V.
- RTCA/DO-160 compliant.
- BISS-1 and BISS-E encryption.
- AES-128 and AES-256 encryption (optional).
- Remux (optional).
- KLV metadata embedded on SDI (optional).
- Zero microphony.
5 customers are viewing this product
Details
The HDT-02 is the new H.264 multiband-multifunction transmitter developed by SVP Aerospace. It features H.264 – 4:2:2 encoding for HD and SD signals.
This small transmitter performs DVB-T, DVB-T2, DVB-S (optional) and DVB-S2 (optional) modulations. An L band IF output is available which enables to use the transmitter as a satellite encoder and modulator unit. It allows simultaneous terrestrial and satellite transmission and the ultra-wide frequency band is from 1.0 to 6.4 GHz.
The exceptional specifications of this transmitter make the HDT-02 suitable for: DNSG, as high-performance encoder, camera transmitter (using AB or V mount clamping system, optional), helicopter transmitter (with an amplifier) and operation in different countries (frequency range operation from 1 to 6,4 GHz with one transmitter alone).
Main Features:
- Ultra Wide RF: 1 to 6.4 GHz.
- Terrestrial and satellite transmission.
- Highest video quality available: 1080p/50, 1080p/60, 3G-SDI.
- Lowest Delay in H.264: 33 ms.
- Power supply range: 8 – 36 V.
- RTCA/DO-160 compliant.
- BISS-1 and BISS-E encryption.
- AES-128 and AES-256 encryption (optional).
- Remux (optional).
- KLV metadata embedded on SDI (optional).
- Zero microphony.
