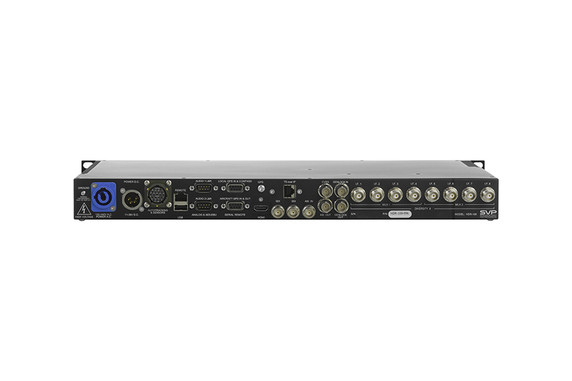

SVP Aerospace HDR-108 H.264 HD Video Receiver
Product Code:
HDR-108
Condition:
New
Weight:
3.20 KGS
Width:
25.10
(cm)
Height:
12.75
(cm)
Depth:
9.46
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The new HDR-108 Receiver has been designed by SVP Aerospace to perform DVB-T2, DVB-T and ISDB-T demodulations.
It is a H.264 and MPEG-2 HD/SD professional broadcast quality decoder, based on NTT technology. Besides, it works in 4:2:2 with 10 bits. Ultra low latency (end-to-end) of less than one frame is achieved as long as it is used together with SVP transmitters.
The HDR-108 integrates COFDM demodulation and spatial diversity based on MRC technique (Maximum Ratio Combining), which reduces the effects of multipath and fading losses. This receiver developed by SVP Aerospace has several outputs: analogue video, Transport Stream over IP, 3G/SD/HD-SDI and HDMI. It offers the received signal in all the outputs simultaneously. The new HDMI output is particularly interesting to use with semiprofessional monitors.
ASI and Transport Stream over IP inputs enable its use as a standalone decoder and the ASI and the Transport Stream over IP outputs enable its use as a demodulator.
Main Features:
- MRC Diversity 8 technique.
- NTT H.264 compression technology.
- Highest video quality available: 1080p/50-60, 3G-SDI.
- Lowest Delay in H.264: 33 ms.
- ASI and Transport Stream over IP
- Power supply range: 11 – 36 V and 100 – 240 V.
- HDMI.
- Integrated Autotracking Antenna controlled by GPS and Compass.
- BISS-1 and BISS-E encryption.
- AES-128 and AES-256 encryption (optional).
Applications:
- High-performance decoder.
- Fixed receiver in central receiver points.
- Airborne receiver installation possible.
- Portable receiver.
- Operation from 1.3 to 13 GHz (depending on the down-converter used).
| SPECIFICATIONS | |
| RF STAGE DVB-T2 AND DVB-T | |
| IF Frequency range | 150 to 980 MHz |
| Tuning Step | 10 kHz |
| Input level range | DVB-T2 @ 2 GHz: -20 to -102 dBm DVB-T2 @ 5 GHz: -20 to -101 dBm |
| Diversity | 8 in DVB-T2, DVB-T and ISDB-T |
| Diversity Technique | MRC (Maximum Ratio Combining) Switching |
| DEMODULATION | |
| DVB-T | COFDM 2K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 5, 6, 7, 8 MHz Max bitrate: 31.67 Mbps Min bitrate: 1 Mbps |
| DVB-T2 | COFDM 2K, 4k, 8k, 8_ext QPSK, 16QAM, 64QAM, 256QAM Constellation rotation LDPC FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 IG: 1/4, 19/128, 1/8, 19/256, 1/16 Bandwidth: 1.7, 5, 6, 7, 8 MHz Max bitrate: 46.4 Mbps Min bitrate: 1 Mbps |
| ISDB-T | COFDM 2K, 4K and 8K mode QPSK, 16QAM, 64QAM FEC: 1/2, 2/3, 3/4, 5/6, 7/8 IG: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6, 7, 8 MHz Max bitrate: 31 Mbps |
| DECODER | |
| H.264 – Profile | Baseline, Main, High, High 422 (it supports 10 bits) |
| Audio decoder | MPEG-1 Layer I/II |
| H.264 – Level | 4.1 – 4.2 |
| Max. input bitrate | 320 Mbps |
| H. 264 – Latency | Low delay: 33 ms |
| Genlock input | Black burst or tri-level, Genlock loop |
| MPEG-2 – Profile | 422P@HL, MP@HL, 422P@ML, MP@ML Latency: 33ms |
| VIDEO | |
| Outputs | 2 x 3G-SDI, HD-SDI and SD-SDI HDMI (1.4) 1 x Composite video with Down Conversion (PAL/NTSC) |
| Formats | 1080p: 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 Hz 1080i: 50/ 59.94/ 60 Hz 720p: 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 Hz 576i (PAL): 50 Hz 480i (NTSC): 59.94 Hz |
| AUDIO | |
| Output | HDMI Embedded SDI Embedded AES Digital Analogue |
| Analogue | 2 Stereo / 4 Mono |
| SDI Embedded | 1 group (4 audio channels) |
| AES/EBU | 2 stereo channels |
| DATA CHANNELS | |
| Data channel | User data / GPS |
| Data rate | 1,200 to 57,600 bps |
| ASI & IP | |
| Outputs and Inputs | ASI Transport Stream (EN50083-9) Transport Stream over IP (SMPTE2022/CoP3) – FEC Max. TS packets / IP packet: 7 |
| DECRYPTION | |
| BISS | BISS-1 and BISS-E |
| AES | AES-128 and AES-256 |
| CONTROL & MONITORIZATION | |
| Control interfaces | Front panel and display Web server Serial Control |
| Monitoring | Decoder parameters Demodulation parameters Frequency and input level MER, BER, C/N Alarms, warnings, logbook and clock |
| Audio & Video | TFT Video screen 2» 2x Stereo loud-speakers Earphone output |
| AUTOTRACKING | |
| Antenna control | Local GPS, Remote GPS and Compass (optional) |
| POWER SUPPLY | |
| AC input | 100 to 240 V |
| DC input | 11 to 36 V |
| MECHANICAL | |
| Size | 1 RU rack size |
| Weight | 3.2 kg |
