SVP Aerospace HAP_60 High Performance Parabolic Antenna 60cm
Product Code:
HAP_60
Condition:
New
Weight:
5.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

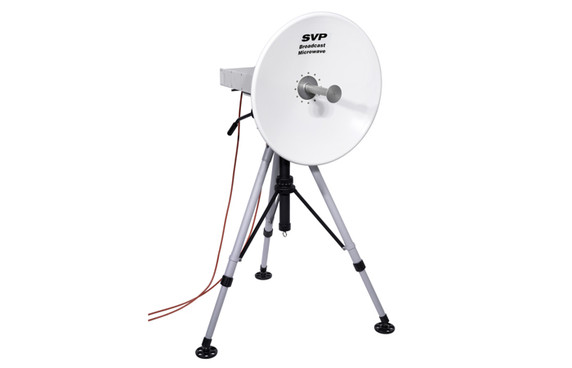

SVP Aerospace´s HAP_60 parabolic antenna is a single polarization antenna, with a 60 cm diameter. This antenna works in the 2 GHz, 6 GHz, 7 GHz, 10 GHz amd 13 GHz frequency bands.

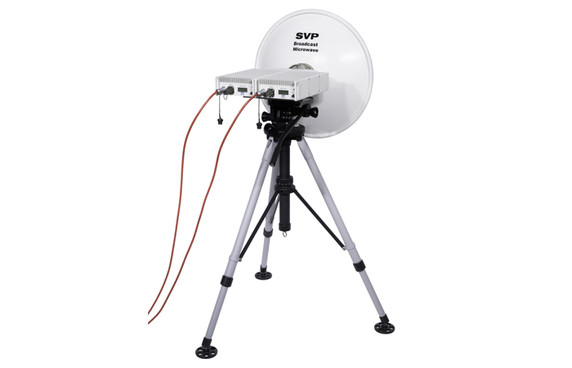

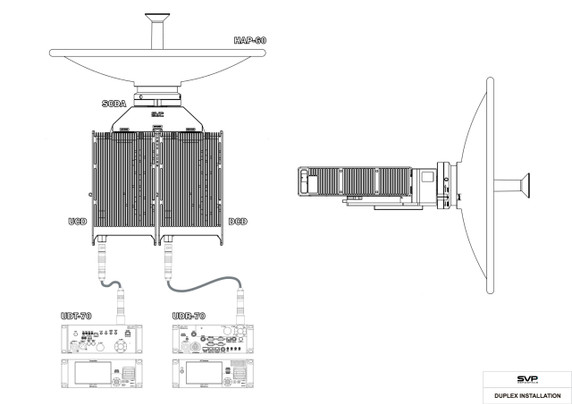

It has been specially designed to be used in portable SVP Links. It can be clamped to the RF head of SVP equipment. The reflector is made of aluminium and has an external ring, which increases the robustness of the structure. The feeder has a quickset system and can be clamped to the antenna without screws.
The design and material of these antennas make them high quality and very robust. The best performance and long-life usage is guaranteed. The HAP antenna can be used in the most adverse weather conditions.
| SPECIFICATIONS | |
| HAP ANTENNA | |
| Frequency band | 2 GHz, 6 GHz, 7 GHz, 10 GHz and 13 GHz |
| Bandwidth | 500 MHz |
| Gain | Depends on the frequency |
| Polarization | Vertical or horizontal |
| VSWR | Typ < 1.8 |
| Connector | N male |
| Diameter | 60 cm |
| Weight | 5 kg |
5 customers are viewing this product
Details
SVP Aerospace´s HAP_60 parabolic antenna is a single polarization antenna, with a 60 cm diameter. This antenna works in the 2 GHz, 6 GHz, 7 GHz, 10 GHz amd 13 GHz frequency bands.
It has been specially designed to be used in portable SVP Links. It can be clamped to the RF head of SVP equipment. The reflector is made of aluminium and has an external ring, which increases the robustness of the structure. The feeder has a quickset system and can be clamped to the antenna without screws.
The design and material of these antennas make them high quality and very robust. The best performance and long-life usage is guaranteed. The HAP antenna can be used in the most adverse weather conditions.
| SPECIFICATIONS | |
| HAP ANTENNA | |
| Frequency band | 2 GHz, 6 GHz, 7 GHz, 10 GHz and 13 GHz |
| Bandwidth | 500 MHz |
| Gain | Depends on the frequency |
| Polarization | Vertical or horizontal |
| VSWR | Typ < 1.8 |
| Connector | N male |
| Diameter | 60 cm |
| Weight | 5 kg |
