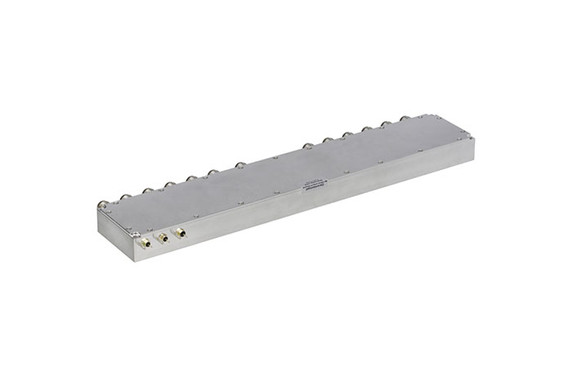

SVP Aerospace FIBRE Active IF Distributor
Product Code:
IF DIST
Condition:
New
Weight:
0.80 KGS
Width:
32.20
(cm)
Height:
2.20
(cm)
Depth:
5.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The intermediate frequency distributor, FIBRE IF DIST, offers at all outputs, the same input signal. As it is an active distributor, the output signal level in each output is the same input signal level.
It makes possible that several receivers share down-converters and antennas; it is possible to carry out multiple receptions with just one antenna and one down-converter.
Main features:
- Frequency range: 70MHz to 1GHz
- Fibre to coaxial conversion
- High IP3: it can work with high input levels and in 64QAM.
- The distributor and the down-converter can be powered by any output.
- Every output is isolated by diodes: the power supply does not go to other outputs.
| SPECIFICATIONS | |
| Number of outputs | 12 |
| Frequency Range | 70 to 1000 MHz |
| IF Out Input Voltage Range | +9 to +36 V DC |
| Insertion loss | typ. 0 dB, max. 2 dB |
| Operating Temperature Range | -20ºC to +55ºC |
| RF IN / DC OUT 1 | RF Input Power: max. +10 dBm Return loss (S11): min. 10 dB Load Current: max 1.0 A COAX Connector: TNC Female Impedance: 50 Ohms Optical Fiber Connector: FC/UPC (Selectable via Switch) |
| RF OUT 1…12 / DC IN 1…12 | Return loss (S11): min 12 dB Input voltage range: +9…36 V DC Connector: TNC Female Impedance: 50 Ohms Insertion loss: typ. 0 dB, max 2 dB |
| DC IN 13 | Input voltage range: +9…36 V DC Connector: feedthrough capacitor |
| DC OUT 2 from DC IN 1…12 or DC IN 13 | Input voltage range: +9…36 V DC Connector: feedthrough capacitor |
| Mechanics | Case: milled aluminium Dimensions (mm): 322 x 58 x 22 Weight: Typ 800g |
5 customers are viewing this product
Details
The intermediate frequency distributor, FIBRE IF DIST, offers at all outputs, the same input signal. As it is an active distributor, the output signal level in each output is the same input signal level.
It makes possible that several receivers share down-converters and antennas; it is possible to carry out multiple receptions with just one antenna and one down-converter.
Main features:
- Frequency range: 70MHz to 1GHz
- Fibre to coaxial conversion
- High IP3: it can work with high input levels and in 64QAM.
- The distributor and the down-converter can be powered by any output.
- Every output is isolated by diodes: the power supply does not go to other outputs.
| SPECIFICATIONS | |
| Number of outputs | 12 |
| Frequency Range | 70 to 1000 MHz |
| IF Out Input Voltage Range | +9 to +36 V DC |
| Insertion loss | typ. 0 dB, max. 2 dB |
| Operating Temperature Range | -20ºC to +55ºC |
| RF IN / DC OUT 1 | RF Input Power: max. +10 dBm Return loss (S11): min. 10 dB Load Current: max 1.0 A COAX Connector: TNC Female Impedance: 50 Ohms Optical Fiber Connector: FC/UPC (Selectable via Switch) |
| RF OUT 1…12 / DC IN 1…12 | Return loss (S11): min 12 dB Input voltage range: +9…36 V DC Connector: TNC Female Impedance: 50 Ohms Insertion loss: typ. 0 dB, max 2 dB |
| DC IN 13 | Input voltage range: +9…36 V DC Connector: feedthrough capacitor |
| DC OUT 2 from DC IN 1…12 or DC IN 13 | Input voltage range: +9…36 V DC Connector: feedthrough capacitor |
| Mechanics | Case: milled aluminium Dimensions (mm): 322 x 58 x 22 Weight: Typ 800g |
