SVP Aerospace DC-FIBER Down-Converter
Product Code:
DC-FIBER
Condition:
New
Weight:
1.20 KGS
Width:
31.70
(cm)
Height:
4.30
(cm)
Depth:
17.00
(cm)
$1.00

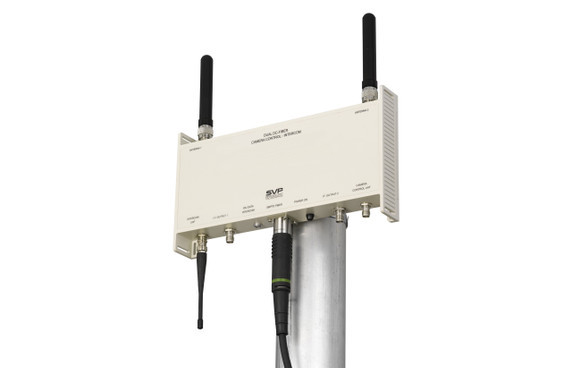

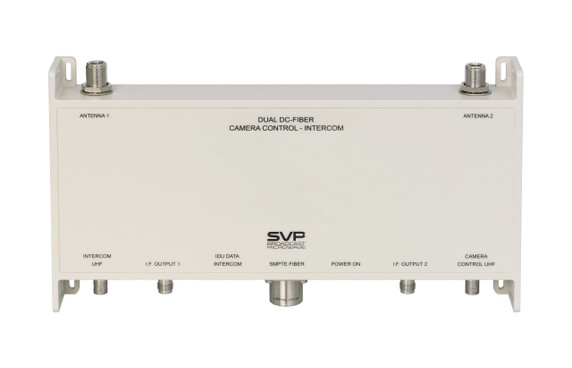

The DC FIBER Down-Converter converts signals received in the RF band to the IF band. It is formed by two inner modules which enable the reception of two different antennas.

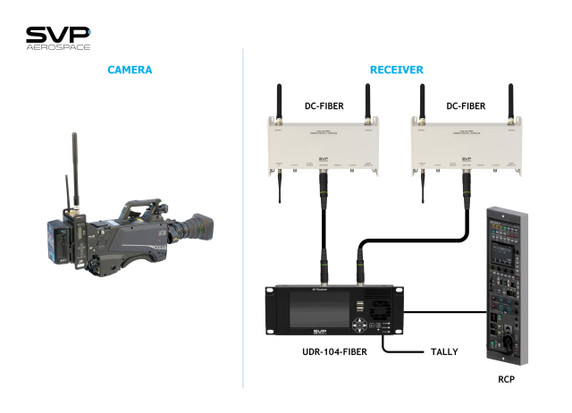

This down-converter is suitable for wireless camera links where 2 or 4 antennas are used with the UDR-104 FIBER Receiver, for which it has been specifically designed, a total of 2 down converters (4 antennas) can be used.
The IF signals can travel through both Optical Fiber or Coaxial outputs.
This product includes a wireless camera control radio which in combination with the UDR-104 FIBER Receiver allows the control of the camera, Tally and Intercom transmission.
The DC FIBER Down-Converter has a display in which signal levels can be monitored at all times.
Main features:
- Two down converter modules and two RF filters integrated
- Frequency range: 1.2 to 13 GHz, in bands
- Wireless control camera ODU integrated
- Very high IP3. It can work with a high level of received signals
- OPTICAL FIBER and COAXIAL IF signal outputs
- Signal level display
- High stability and low phase noise local oscillator
- It can work in extreme weather conditions
| SPECIFICATIONS | |
| DOWN CONVERTER | |
| Frequency range | DC-FIBER_1200-1500 (1.200 to 1.500 MHz) DC-FIBER_1700-1900 (1.700 to 1.900 MHz) DC-FIBER_2000-2100 (2.000 to 2.100 MHz) DC-FIBER_2000-2700 (2.000 to 2.700 MHz) DC-FIBER_2200-2400 (2.200 to 2.400 MHz) DC-FIBER_2200-2900 (2.200 to 2.900 MHz) DC-FIBER_3200-3900 (3.200 to 3.900 MHz) DC-FIBER_4400-5000 (4.400 to 5.000 MHz) DC-FIBER_5000-5500 (5.000 to 5.500 MHz) DC-FIBER_5500-6000 (5.500 to 6.000 MHz) DC-FIBER_6430-7130 (6.430 to 7.130 MHz) DC-FIBER_6800-7500 (6.800 to 7.500 MHz) DC-FIBER_8000-8500 (8.000 to 8.500 MHz) DC-FIBER_10000-10500 (10.000 to 10.500 MHz) DC-FIBER_12750-13250 (12.750 to 13.250 MHz) Other frequency ranges on request |
| Noise figure | < 1.5 dB |
| Conversion gain | > 25 dB |
| Frequency of the local oscillator | Depends on the frequency band |
| IF Output frequency | UHF band |
| Phase noise | -98 dBc/Hz @ 10 kHz |
| Supply voltage range | 9 to 36 V DC |
| Nº of cells of the input filter | 6 |
| Static protection | Yes |
| RF Connector | 2 x N Female |
| IF Connector | 1 x SMPTE Fiber (Lemo) (Optional) 2 x TNC or BNC (75 Ohm) |
| Size | 317 x 170 x 43 mm |
| Temperature range | From -40 to 60ºC |
| Weight | 1.2 kg |
| WIRELESS CAMERA CONTROL AND INTERCOM (OPTIONAL) | |
| ODU Data Intercom Connector | Lemo 0B 7 pins |
| Intercom UHF Connector | BNC Female |
| Camera Control UHF Connector | BNC Female |
| RF Out | 100 mW / 500 mW / 1 Watt |
| Frequency | 403–473 MHz |
| Bandwidth | 25 kHz |
