SVP Aerospace DC Down-Converter
Product Code:
DC
Condition:
New
Weight:
0.85 KGS
Width:
12.00
(cm)
Height:
3.50
(cm)
Depth:
16.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

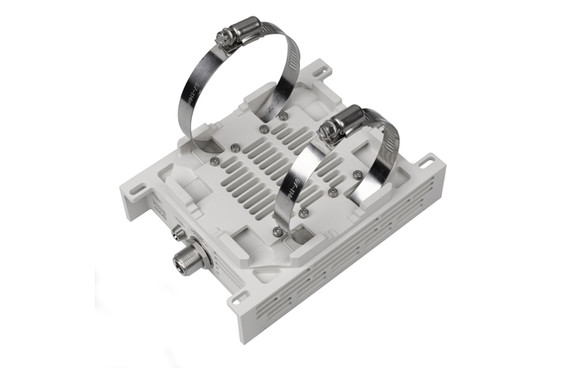

The DC down-converter has been specially designed to work with COFDM signals. This equipment converts signals received in the RF band to the UHF band.
The use of external down-converters, as long as they are installed next to the receiver antennas, enables the installation of the receiver unit far from the antennas. In the UHF band cable losses are lower than in the RF band.
Main features:
- Frequency range: 1.2 to 13 GHz, in bands.
- Designed to work in environments with lots of RF signals.
- Excellent linearity is guaranteed.
- Very high IP3. It can work with a high level of received signals.
- PHEMT technology is used.
- High stability and low phase noise local oscillator.
- Excellent MER results in the receiver.
- One LED informs the operator of the down-converter’s status.
- Good adaptation at the amplifier input.
- This equipment is fed by the receiver.
- Watertight. It can work in extreme weather conditions.

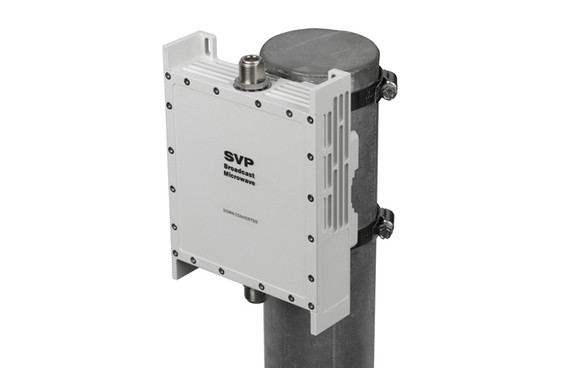

- Two stainless steel brackets for its fixation to a mast included.
| SPECIFICATIONS | |
| DOWN CONVERTER | |
| Frequency range | DC_1300-1500 (1.300 to 1.500 MHz) DC_1700-1900 (1.700 to 1.900 MHz) DC_2000-2107 (2.000 to 2.107MHz) DC_2200-2400 (2.200 to 2.400 MHz) DC_2500-2650 (2.500 to 2.650MHz) DC_2000-2700 (2.000 to 2.700MHz) DC_3200-3900 (3.200 to 3.900 MHz) DC_4400-5000 (4.500 to 5.000 MHz) DC_5000-5300 (5.000 to 5.300 MHz) DC_5500-6000 (5.500 to 6.000 MHz) DC_6430-7130 (6.430 to 7.130 MHz) DC_6800-7500 (6.800 to 7.500 MHz) DC_8000-8500 (8.000 to 8.500 MHz) DC_10000-10500 (10.000 to 10.500 MHz) DC_12750-13250 (12.750 to 13.250 MHz) Other frequency ranges on request. |
| Noise figure | < 1.5 dB |
| Conversion gain | Switchable from 24 to 41dB |
| Frequency of the local oscillator | Programmable LO Frequency |
| Output frequency | UHF band |
| Phase noise | -98 dBc/Hz @ 10 kHz |
| Supply voltage range | 9 to 24 VDC |
| DC consumption at 12 V | 350 mA @ 12V |
| Nº of cells of the input filter | 6 |
| Static protection | Yes |
| RF Connector | N |
| IF Connector | N, TNC or BNC(75 Ohm) |
| IF Impedance | 50 or 75 Ohm |
| Size | 119.5 x 162.6 x 34.5 mm (WxHxD) (w/o brackets) |
| Temperature range | From -40 to 60ºC |
| Weight | 850 g |
