SVP Aerospace
SVP Aerospace Complete Wireless Camera Control System
Product Code:
CC-Camera
Condition:
New
Weight:
1.60 KGS
Width:
21.00
(cm)
Height:
6.00
(cm)
Depth:
14.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

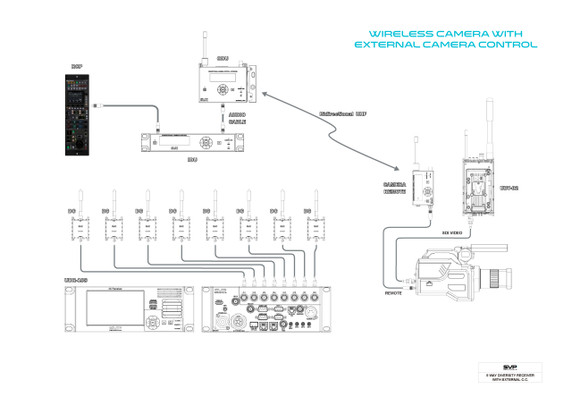

SVP Aerospace’s new bidirectional camera control consists of three pieces of equipment: CC-IDU, CC-ODU and CC-Camera.

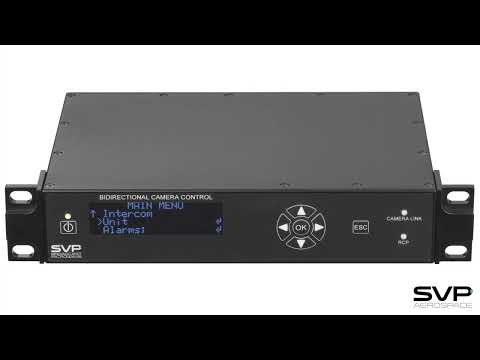

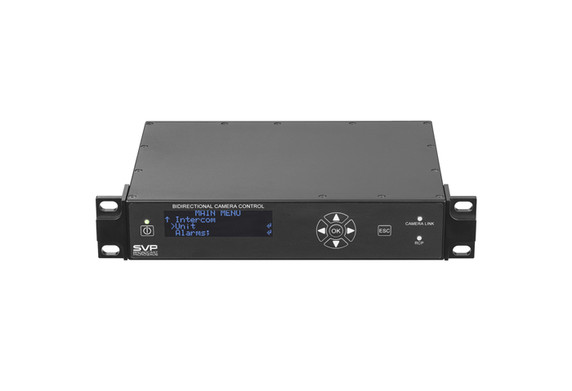

The Camera Control Indoor Unit (CC-IDU) is designed to control up to 4 cameras, with the option for full Ethernet control, integrating into an existing OCP network.
The Control Outdoor Unit (CC-ODU) is a 1-watt UHF transmitter used with the CC-IDU and CC-Camera. It wirelessly connects the CC-Cameras. You will need as many CC-ODUs as cameras you want to remotely control. Each camera would have its own UHF channel.
The CC-Camera is a compact and lightweight camera control, perfect for camera operations in any situation. It connects with a single cable to the camera, and red and green tally.
Thanks to the bidirectionality of the camera control, all its functions are operative by the user.
All systems are compatible with all main camera manufacturers including Panasonic and Sony.
| SPECIFICATIONS | |
| CC-IDU | |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| RF Power | 100 mW / 500 mW / 1 Watt |
| RX Sensitivity | -111 dBm |
| Data to RCP | 4 connectors Serial Ethernet + PoE |
| Data to ODU | RS485 Optical SFP Fiber Ethernet + PoE |
| Available cameras | Sony Panasonic |
| Power Input | 9 to 36 V DC via XLR-4 connector |
| Power Output | PoE via RCP Ethernet connector PoE via ODU Ethernet connector |
| Connectors | DC Power Supply: XLR-4 male ODU RS-485: XLR female ODU Ethernet + PoE: RJ-45 ODU Optical Fiber: SFP RCP Ethernet + PoE: RJ-45 Tally: DB-9 male RCP Serial: 4 × Hirose 8 pin (Sony) |
| Dimensions | W 210 mm × D 144 mm × H 43 mm |
| Weight | 850 gr |
| CC-ODU | |
| Power | 9 to 36 V DC via XLR-4 connector PoE via Ethernet connector |
| Connectors | D.C. power supply: XLR-4 male Ethernet with PoE: RJ-45 Fiber Optic: SFP module RS-485 Data: XLR-3 male Antenna: 2 × TNC female |
| RF Out | 109 mW / 500 mW / 1 Watt |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| Data Input | RS485 via XLR-3 male Via optical fiber with SFP Via Ethernet IP with PoE |
| RX Sensitivity | -111 dBm |
| Dimensions | W 137 mm × D 112 mm × H 50 mm |
| Weight | 590 gr |
| CC-CAMERA | |
| Power | 9 to 36 V supplied through Hirosi connector |
| Connectors | Camera Remote: Hirosi 8 pins Ethernet: RJ-45 Tally Outputs + Microphone + Headphones: Lemo 0B 7 pins Antenna: 2 × TNC Female |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| Camera Data | RS485 or RS232 |
| RX Sensitivity | -111 dBm |
| Dimensions | W 96 mm × D 26 mm × H 61 mm |
| Weight | 160 gr |
5 customers are viewing this product
Details
SVP Aerospace’s new bidirectional camera control consists of three pieces of equipment: CC-IDU, CC-ODU and CC-Camera.
The Camera Control Indoor Unit (CC-IDU) is designed to control up to 4 cameras, with the option for full Ethernet control, integrating into an existing OCP network.
The Control Outdoor Unit (CC-ODU) is a 1-watt UHF transmitter used with the CC-IDU and CC-Camera. It wirelessly connects the CC-Cameras. You will need as many CC-ODUs as cameras you want to remotely control. Each camera would have its own UHF channel.
The CC-Camera is a compact and lightweight camera control, perfect for camera operations in any situation. It connects with a single cable to the camera, and red and green tally.
Thanks to the bidirectionality of the camera control, all its functions are operative by the user.
All systems are compatible with all main camera manufacturers including Panasonic and Sony.
| SPECIFICATIONS | |
| CC-IDU | |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| RF Power | 100 mW / 500 mW / 1 Watt |
| RX Sensitivity | -111 dBm |
| Data to RCP | 4 connectors Serial Ethernet + PoE |
| Data to ODU | RS485 Optical SFP Fiber Ethernet + PoE |
| Available cameras | Sony Panasonic |
| Power Input | 9 to 36 V DC via XLR-4 connector |
| Power Output | PoE via RCP Ethernet connector PoE via ODU Ethernet connector |
| Connectors | DC Power Supply: XLR-4 male ODU RS-485: XLR female ODU Ethernet + PoE: RJ-45 ODU Optical Fiber: SFP RCP Ethernet + PoE: RJ-45 Tally: DB-9 male RCP Serial: 4 × Hirose 8 pin (Sony) |
| Dimensions | W 210 mm × D 144 mm × H 43 mm |
| Weight | 850 gr |
| CC-ODU | |
| Power | 9 to 36 V DC via XLR-4 connector PoE via Ethernet connector |
| Connectors | D.C. power supply: XLR-4 male Ethernet with PoE: RJ-45 Fiber Optic: SFP module RS-485 Data: XLR-3 male Antenna: 2 × TNC female |
| RF Out | 109 mW / 500 mW / 1 Watt |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| Data Input | RS485 via XLR-3 male Via optical fiber with SFP Via Ethernet IP with PoE |
| RX Sensitivity | -111 dBm |
| Dimensions | W 137 mm × D 112 mm × H 50 mm |
| Weight | 590 gr |
| CC-CAMERA | |
| Power | 9 to 36 V supplied through Hirosi connector |
| Connectors | Camera Remote: Hirosi 8 pins Ethernet: RJ-45 Tally Outputs + Microphone + Headphones: Lemo 0B 7 pins Antenna: 2 × TNC Female |
| Frequency | 403–473 MHz |
| Bandwidth | 25 KHz |
| Camera Data | RS485 or RS232 |
| RX Sensitivity | -111 dBm |
| Dimensions | W 96 mm × D 26 mm × H 61 mm |
| Weight | 160 gr |
