SVP Aerospace

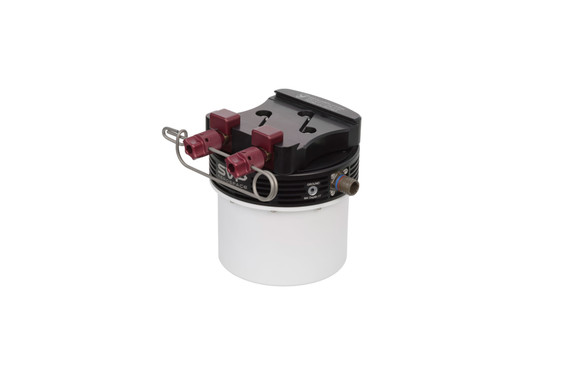

SVP Aerospace BLOS-04 Cellular DataLink
Product Code:
BLOS-04
Condition:
New
Weight:
0.89 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Unlimited Connectivity for Mission-Critical Aeronautical Applications
SVP Aerospace, a global leader in microwave transmission solutions, introduces the new BLOS-04 Cellular DataLink, engineered to extend beyond line-of-sight (BLOS) coverage without compromising performance or security.

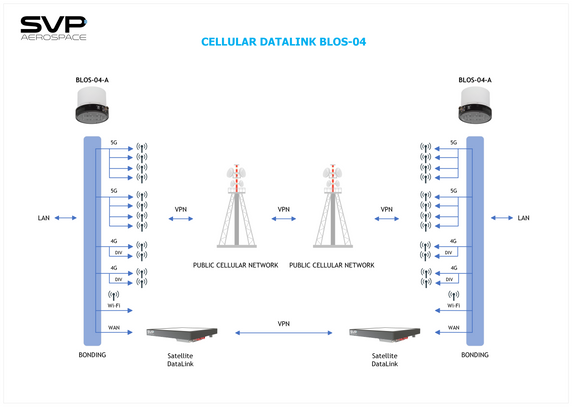

This hybrid solution combines the best of both worlds:
A high-performance microwave link for line-of-sight (LOS) operations, backed by SVP Aerospace’s proven technology.

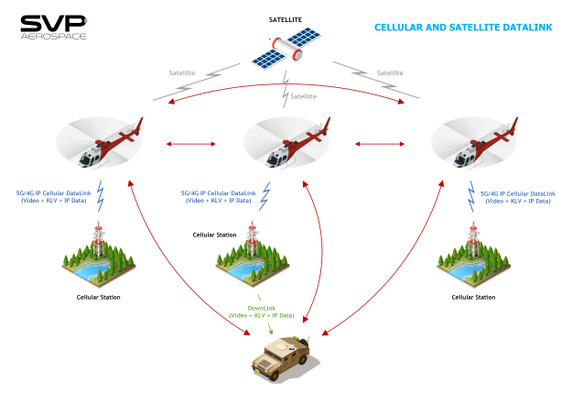

Extended connectivity through 4G (LTE) and 5G cellular networks, as well as satellite links such as the BLOS-10, powered by Starlink, among other compatible options.
Cellular technology provides a significant boost in bandwidth and robust transmission from virtually any location through the aggregation of multiple mobile network operators.

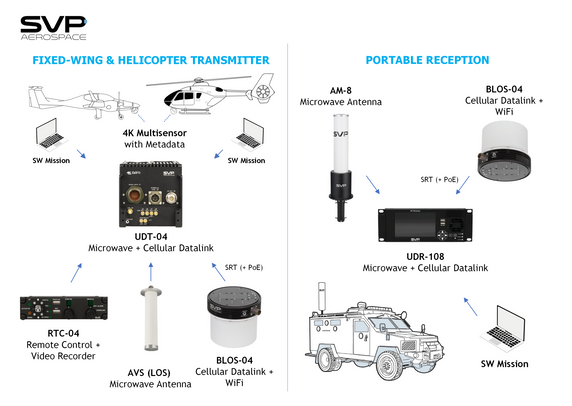

The BLOS-04 is fully compatible with SVP Aerospace’s latest-generation transmitters and receivers. It can be integrated as part of a complete solution or operate as a standalone module, adapting seamlessly to existing systems.
Specifically designed for demanding aeronautical environments, the BLOS-04 DataLink meets DO-160 certification standards, supports AES-256 encryption, and enables the Stanag 4609 KLV metadata, ensuring mission integrity and data security.
Key Features:
- High bandwidth with multi-link aggregation.
- Global coverage with no geographic limitations.
- Low latency, ideal for real-time applications.
- DO-160 certified.
- Compatible with satellite links and legacy systems.
- Creation of virtual LAN between different BLOS-04.
Our proprietary antenna system, ensures superior cellular performance and link stability.
| SPECIFICATIONS | |
| NETWORK | |
| Interface Speed | 2 × Ethernet 10/100 Mb |
| Interface | 1 × LAN and 1 × WAN |
| SIM Cards | Option A: 2 × 5G & 2 × 4G (LTE) Option B: 4 × 4G (LTE) |
| WiFi | Access Point (5 GHz) |
| POWER | |
| Power Supply | External connector PoE (active and passive) |
| Power Supply Range | 11 to 72 V DC |
| Power Consumption | 30 W |
| GENERAL | |
| Supported Data | IP Streaming with AES-256 encryption and KLV metadata |
| Internal Antennas | 2 antennas per 4G (LTE) SIM 4 antennas per 5G SIM 1 antenna for WiFi 1 antenna for GPS |
| GPS | Compatible with Mission GPS software |
| MECHANICAL | |
| Connector | D38999, 13 pins |
| Weight | 890 g |
| Size | 112 × 131 mm (diameter) |
| Installation | Compatible with: – Airfilm Camera Systems DT-1-1 – Dart Aerospace Crosstube Antenna Mount Kit |
| ENVIRONMENTAL | |
| Protection | Waterproof (IP67) Gore pressure valve |
| Certification | DO-160 |
| SECURITY | |
| Cybersecurity | Encryption up to AES-256-CBC |
