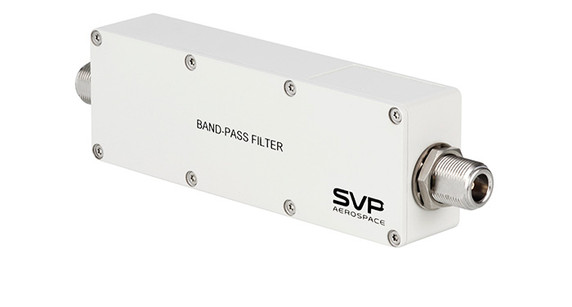

SVP Aerospace Bandpass Waterproof Filters
Product Code:
WBF
Condition:
New
Weight:
0.32 KGS
Width:
14.20
(cm)
Height:
4.70
(cm)
Depth:
2.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP Aerospace can provide a broad range of RF and microwave band pass waterproof filters.
These filters are available for different frequency bands and of different bandwidths. Insertion losses are very low.
Bandpass filters are commonly used at the receiver site in order to delimit the band where the receiver will operate. These bandpass filters attenuate the signals out of the band and protect the down-converter from being saturated by nearby signals.
| SPECIFICATIONS | |||
| WBF-2000-2107 | WBF-2000-2700 | WBF-2010-2090 | |
| Frequency: | 2,000 to 2,107 MHz | 2,000 to 2,700 MHz | 2,010 to 2,090 MHz |
| Bandwidth: | 107 MHz | 700 MHz | 80 MHz |
| Insertion Loss: | < 1 dB | < 0.3 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 5 | 4 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-2023-2111 | WBF-2083-2107 | WBF-2100-2700 | |
| Frequency: | 2,023 to 2,111 MHz | 2,083 to 2,107 MHz | 2,100 to 2,700 MHz |
| Bandwidth: | 88 MHz | 24 MHz | 600 MHz |
| Insertion Loss: | < 1 dB | < 1 dB | < 0.3 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 6 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-2200-2600 | WBF-2210-2386 | WBF-2225-2330 | |
| Frequency: | 2,200 to 2.600 MHz | 2,210 to 2,386 MHz | 2,225 to 2,330 MHz |
| Bandwidth: | 400 MHz | 176 MHz | 105 MHz |
| Insertion Loss: | < 0.3 dB | < 1 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 8 | 6 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50 ºC |
| WBF-2260-2540 | WBF-2304-2376 | WBF-2330-2610 | |
| Frequency: | 2,260 to 2,540 MHz | 2,304 to 2,376 MHz | 2,330 to 2,610 MHz |
| Bandwidth: | 280 MHz | 72 MHz | 280 MHz |
| Insertion Loss: | < 1 dB | < 0.6 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 4 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-3400-4000 | WBF-4400-5100 | WBF-6800-7300 | |
| Frequency: | 3,400 to 4,000 MHz | 4,400 to 5,100 MHz | 6,800 to 7,300 MHz |
| Bandwidth: | 600 MHz | 350 MHz | 500 MHz |
| Insertion Loss: | < 0.2 dB | < 1 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 10 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-10000-10500 | WBF-10200-10600 | ||
| Frequency: | 10,000 to 10,500 MHz | 10,200 to 10,600 MHz | |
| Bandwidth: | 500 MHz | 400 MHz | |
| Insertion Loss: | < 0.5 dB | < 0.5 dB | |
| Connectors: | N female | N female | |
| Weight: | 320 g | 320 g | |
| Nº of poles: | 5 | 5 | |
| Static protection | Yes | Yes | |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | |
| Temperature range | -20 to 50ºC | -20 to 50ºC | |
5 customers are viewing this product
Details
SVP Aerospace can provide a broad range of RF and microwave band pass waterproof filters.
These filters are available for different frequency bands and of different bandwidths. Insertion losses are very low.
Bandpass filters are commonly used at the receiver site in order to delimit the band where the receiver will operate. These bandpass filters attenuate the signals out of the band and protect the down-converter from being saturated by nearby signals.
| SPECIFICATIONS | |||
| WBF-2000-2107 | WBF-2000-2700 | WBF-2010-2090 | |
| Frequency: | 2,000 to 2,107 MHz | 2,000 to 2,700 MHz | 2,010 to 2,090 MHz |
| Bandwidth: | 107 MHz | 700 MHz | 80 MHz |
| Insertion Loss: | < 1 dB | < 0.3 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 5 | 4 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-2023-2111 | WBF-2083-2107 | WBF-2100-2700 | |
| Frequency: | 2,023 to 2,111 MHz | 2,083 to 2,107 MHz | 2,100 to 2,700 MHz |
| Bandwidth: | 88 MHz | 24 MHz | 600 MHz |
| Insertion Loss: | < 1 dB | < 1 dB | < 0.3 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 6 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-2200-2600 | WBF-2210-2386 | WBF-2225-2330 | |
| Frequency: | 2,200 to 2.600 MHz | 2,210 to 2,386 MHz | 2,225 to 2,330 MHz |
| Bandwidth: | 400 MHz | 176 MHz | 105 MHz |
| Insertion Loss: | < 0.3 dB | < 1 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 8 | 6 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50 ºC |
| WBF-2260-2540 | WBF-2304-2376 | WBF-2330-2610 | |
| Frequency: | 2,260 to 2,540 MHz | 2,304 to 2,376 MHz | 2,330 to 2,610 MHz |
| Bandwidth: | 280 MHz | 72 MHz | 280 MHz |
| Insertion Loss: | < 1 dB | < 0.6 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 4 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-3400-4000 | WBF-4400-5100 | WBF-6800-7300 | |
| Frequency: | 3,400 to 4,000 MHz | 4,400 to 5,100 MHz | 6,800 to 7,300 MHz |
| Bandwidth: | 600 MHz | 350 MHz | 500 MHz |
| Insertion Loss: | < 0.2 dB | < 1 dB | < 1 dB |
| Connectors: | N female | N female | N female |
| Weight: | 320 g | 320 g | 320 g |
| Nº of poles: | 5 | 10 | 5 |
| Static protection | Yes | Yes | Yes |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | 142 x 47 x 28 mm |
| Temperature range | -20 to 50ºC | -20 to 50ºC | -20 to 50ºC |
| WBF-10000-10500 | WBF-10200-10600 | ||
| Frequency: | 10,000 to 10,500 MHz | 10,200 to 10,600 MHz | |
| Bandwidth: | 500 MHz | 400 MHz | |
| Insertion Loss: | < 0.5 dB | < 0.5 dB | |
| Connectors: | N female | N female | |
| Weight: | 320 g | 320 g | |
| Nº of poles: | 5 | 5 | |
| Static protection | Yes | Yes | |
| Size (w/o connectors) | 142 x 47 x 28 mm | 142 x 47 x 28 mm | |
| Temperature range | -20 to 50ºC | -20 to 50ºC | |
