SVP Aerospace

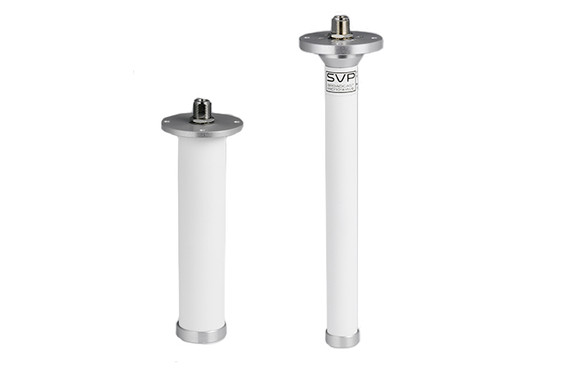

SVP Aerospace AVS Omni Linear 4.5 dBi Airborne Antenna
Product Code:
AVS-45
Condition:
New
Weight:
0.32 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP Aerospace AVS vertically polarized omni antennas are designed for applications requiring extra strength, particularly for vehicle roof applications (to withstand tree branch impacts) and for fixed-wing aircraft installations (to withstand higher wind speeds than in a helicopter operation).
These antenna serve as a complement to SVP’s slimline omni antenna range, similarly featuring highly efficient, wideband groundplane independent 2 tier arrays of balanced centre-fed collinear dipoles.
High performance with consistent gain and radiation pattern across their wide operating bands results from a unique conical dipole and double isolating choke design preventing stray currents on the feed system.
| SPECIFICATIONS | |
| AVS OMNI LINEAR ANTENNA | |
| Frequency | 1,700 – 1,900 MHz 2,000 – 2,500 MHz 2,300 – 2,700 MHz 3,300 – 3,700 MHz 4,400 – 5,000 MHz |
| Gain | 4.5 dBi |
| Elevation -3dB B/W | 35 degrees |
| Azimuth -3dB B/W | 360 degrees (omni, no ripple) |
| Polarization | Vertical |
| Return Loss | 14 dB Typical (1.7 to 1 VSWR) |
| Diameter | 41 mm |
| Length | 330 mm (1,700 – 1,900 MHz) 277 mm (2,000 – 2,500 MHz) 252 mm (2,300 – 2,700 MHz) 212 mm (3,300 – 3,700 MHz) 179 mm (4,400 – 5,000 MHz) |
| Weight | 320 gr (2,000 – 2,500 MHz) |
| Color | White |
| Connector | N female |
| Radome | Fibreglass |
| Mount | Through Hole Flange |
5 customers are viewing this product
Details
SVP Aerospace AVS vertically polarized omni antennas are designed for applications requiring extra strength, particularly for vehicle roof applications (to withstand tree branch impacts) and for fixed-wing aircraft installations (to withstand higher wind speeds than in a helicopter operation).
These antenna serve as a complement to SVP’s slimline omni antenna range, similarly featuring highly efficient, wideband groundplane independent 2 tier arrays of balanced centre-fed collinear dipoles.
High performance with consistent gain and radiation pattern across their wide operating bands results from a unique conical dipole and double isolating choke design preventing stray currents on the feed system.
| SPECIFICATIONS | |
| AVS OMNI LINEAR ANTENNA | |
| Frequency | 1,700 – 1,900 MHz 2,000 – 2,500 MHz 2,300 – 2,700 MHz 3,300 – 3,700 MHz 4,400 – 5,000 MHz |
| Gain | 4.5 dBi |
| Elevation -3dB B/W | 35 degrees |
| Azimuth -3dB B/W | 360 degrees (omni, no ripple) |
| Polarization | Vertical |
| Return Loss | 14 dB Typical (1.7 to 1 VSWR) |
| Diameter | 41 mm |
| Length | 330 mm (1,700 – 1,900 MHz) 277 mm (2,000 – 2,500 MHz) 252 mm (2,300 – 2,700 MHz) 212 mm (3,300 – 3,700 MHz) 179 mm (4,400 – 5,000 MHz) |
| Weight | 320 gr (2,000 – 2,500 MHz) |
| Color | White |
| Connector | N female |
| Radome | Fibreglass |
| Mount | Through Hole Flange |
