SVP Aerospace

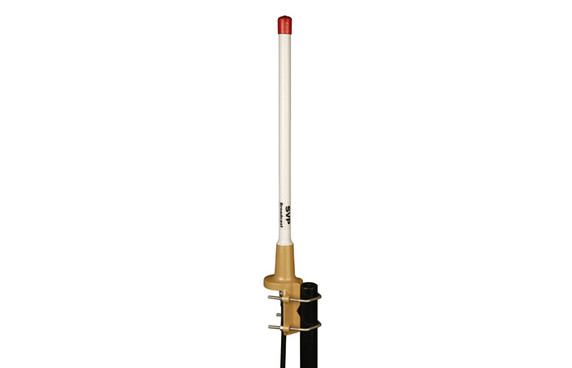

SVP Aerospace AV-U05L Omni Antenna UHF 2 dBi
Product Code:
AV-U05L
Condition:
New
Weight:
0.65 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AV-U05L is a linear polarization omnidireccional antenna, which has 2 dBi gain. It works in the UHF band.
This antenna is commonly used together with the IBS Intercom Base Station from SVP providing 360º coverage.
| SPECIFICATIONS | |
| AV-U05L ANTENNA | |
| Frequency band | UHF (420 – 470 MHz) |
| Bandwidth | 50 MHz |
| Gain | 2 dBi |
| -3dB radiation angle | 75º V |
| Polarization | Linear |
| VSWR | Typ: < 1.5 |
| Connector | N female |
| Size | Ø16 × 680 mm |
| Weight | 650 gr |
5 customers are viewing this product
Details
The AV-U05L is a linear polarization omnidireccional antenna, which has 2 dBi gain. It works in the UHF band.
This antenna is commonly used together with the IBS Intercom Base Station from SVP providing 360º coverage.
| SPECIFICATIONS | |
| AV-U05L ANTENNA | |
| Frequency band | UHF (420 – 470 MHz) |
| Bandwidth | 50 MHz |
| Gain | 2 dBi |
| -3dB radiation angle | 75º V |
| Polarization | Linear |
| VSWR | Typ: < 1.5 |
| Connector | N female |
| Size | Ø16 × 680 mm |
| Weight | 650 gr |
