SVP Aerospace

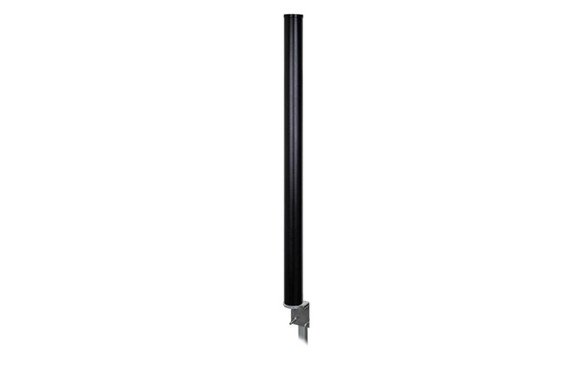

SVP Aerospace AV-206 Omni Antenna 6 dBi
Product Code:
AV-206
Condition:
New
Weight:
2.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AV-206 antennas are commonly used in applications where 360º coverage area with high gain to achieve longer distances is needed.
These antennas can be used in both transmission or reception systems offering an omnidirectional coverage.
| SPECIFICATIONS | |
| AV-206 ANTENNAS | |
| Frequency bands | 2,170 to 2,380 MHz |
| Gain | 6 dBi |
| Polarization | Vertical |
| Return Loss | 14 dB typical |
| VSWR | <1.5 |
| Elevation B/W | 27 degrees |
| Azimuth B/W | 360 degrees |
| Length | 365 mm |
| Diameter | 17.5 mm |
| Connector Type | N male |
5 customers are viewing this product
Details
The AV-206 antennas are commonly used in applications where 360º coverage area with high gain to achieve longer distances is needed.
These antennas can be used in both transmission or reception systems offering an omnidirectional coverage.
| SPECIFICATIONS | |
| AV-206 ANTENNAS | |
| Frequency bands | 2,170 to 2,380 MHz |
| Gain | 6 dBi |
| Polarization | Vertical |
| Return Loss | 14 dB typical |
| VSWR | <1.5 |
| Elevation B/W | 27 degrees |
| Azimuth B/W | 360 degrees |
| Length | 365 mm |
| Diameter | 17.5 mm |
| Connector Type | N male |
