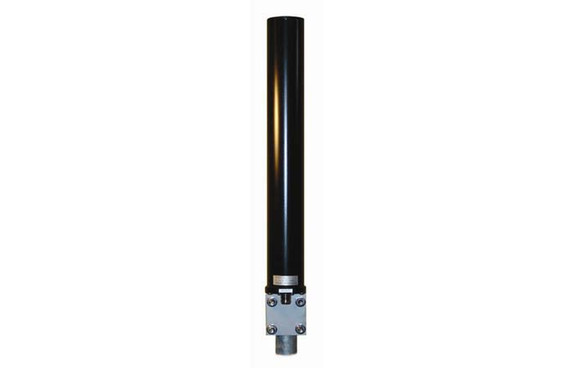

SVP Aerospace AS-616 Linear Polarization Sector Antenna 6 GHz 16 dBi
Product Code:
AS-616
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AS-616 is a sector antenna with linear polarization and with a narrow beamwidth in elevation and in azimuth, with a high gain of 16 dBi.
This antenna has been designed to be installed in the mast and it is used for the reception of links where the transmitter can transmit from different points of a determinate area.
An interesting application is to use the antenna in reception, working in diversity and offering coverage to a city or determinate area.
| SPECIFICATIONS | |
| AS-616 ANTENNA | |
| Frequency band | 6.28 to 6.9 GHz |
| Polarization | Linear (Vertical) |
| Gain | 16 dBi |
| Connector | N female |
| Elevation B/W | 10º |
| Azimuth B/W | 65º |
| Nominal Impedance | 50 Ohm |
| F/B Ratio | >25 dB |
| VSWR | >1.5 dB |
| Mount | Stainless steel bracket and U bolts |
5 customers are viewing this product
Details
The AS-616 is a sector antenna with linear polarization and with a narrow beamwidth in elevation and in azimuth, with a high gain of 16 dBi.
This antenna has been designed to be installed in the mast and it is used for the reception of links where the transmitter can transmit from different points of a determinate area.
An interesting application is to use the antenna in reception, working in diversity and offering coverage to a city or determinate area.
| SPECIFICATIONS | |
| AS-616 ANTENNA | |
| Frequency band | 6.28 to 6.9 GHz |
| Polarization | Linear (Vertical) |
| Gain | 16 dBi |
| Connector | N female |
| Elevation B/W | 10º |
| Azimuth B/W | 65º |
| Nominal Impedance | 50 Ohm |
| F/B Ratio | >25 dB |
| VSWR | >1.5 dB |
| Mount | Stainless steel bracket and U bolts |
