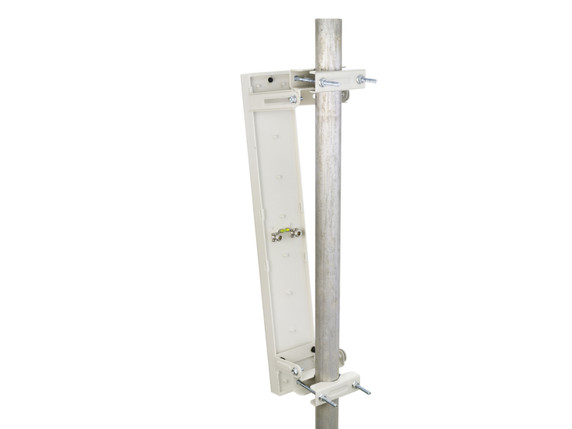

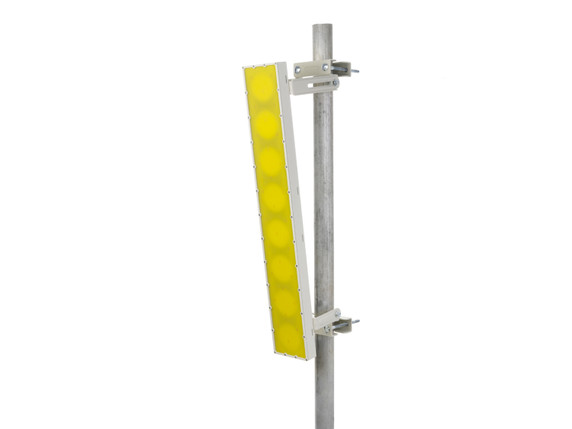

SVP Aerospace AS-217-MIMO Compact Sector Antenna
Product Code:
AS-217-MIMO
Condition:
New
Weight:
3.45 KGS
Width:
70.40
(cm)
Height:
11.10
(cm)
Depth:
33.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP Aerospace’s AS-217-MIMO compact sector antenna feature 17 dBi of peak gain and 90 degrees of horizontal and vertical beam width.This antenna is especially robust and can be installed in places where great resistance to weather adversities is necessary.
Available in 2.02 to 2.7 GHz, this sector antenna is for MIMO and MANET mesh radio systems, wireless infrastructure base stations, citywide and urban-area mesh radio networks, emergency management, and rapid-deploy networks for event management and security.
This MIMO antenna offers better RF link capability and data and voice throughput versus standard vertically polarized antennas in congested RF environments.
| SPECIFICATIONS | |
| AS-217-MIMO Antenna | |
| Frequency band | 2,020 to 2,700 MHz Vertical 2,200 to 2,700 MHz Horizotal |
| Gain | 16 to 17 dBi |
| Azimuth B/W | 90º |
| Elevation B/W | 9º |
| Max. VSWR | 1.5:1 |
| Polarization | Dual Linear |
| Cross-pol Isolation | 28 dB Min. |
| Connectors | 2 x N female |
| Dimensions | 704.1 x 111 x 33.3 mm |
| Weight | 3.45 Kg with bracket |
| Pressure Compensating | Yes |
| Tilt Adjustment | +10 to -3 degrees Adjustment bubble included |
| Mounting | Universal Pole Mount |
