SVP Aerospace AM6 Multi-Sector Diversity 6 Antennas

Name: SVP Aerospace AM6 Multi-Sector Diversity 6 Antennas
Brand: SVP Aerospace
SKU: AM6
Availability: OutOfStock

No reviews yet

Product Code: AM6

Condition: New

Weight: 7.50 KGS

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

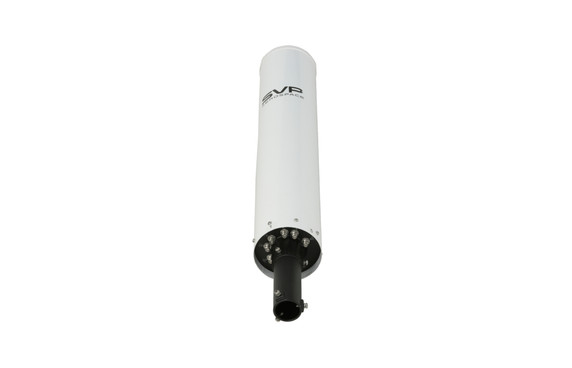

The AM is one of SVP Aerospace´s multisector antennas. It’s a very compact, robust and easy-to-install solution for applications where hemispherical coverage with high gain is needed.

The AM antenna is comprised of 5 vertical linear polarization sector panel antennas to offer an omnidirectional coverage. It also has an up antenna which allows hemispherical coverage.

The AM antenna integrates the bandpass filters and the down-converters. At the TNC connector outputs it offers the received signal filtered, amplified and converted (with LNA included) to the UHF band.

Advantages:

Reception of signals coming from in-motion vehicles.
It offers 360º coverage in the receiver site. There is no need to steer the antennas.
Reception of signals transmitted from aircrafts (helicopters/airplanes) to the ground.

This antenna has been designed to be used in the receiver site in airborne links in diversity-6 mode; the up-down antenna allows the reception of the signal coming from the helicopter even if it is in the vertical direction.

SPECIFICATIONS
AM MULTISECTOR ANTENNA
Frequency bands	1.300 to 1.500 MHz 2.030 to 2.100 MHz 2.200 to 2.400 MHz 2.500 to 2.700 MHz 4.400 to 5.000 MHz 5.000 to 5.500 MHz 5.500 to 6.000 MHz 6.420 to 7.170 MHz 6.800 to 7.500 MHz
Gain	Panel antennas: 5 × 16 dBi Hemispherical: 1 × 2 dBiC (optional)
Polarization	Vertical or Horizontal
Elevation beamwidth	9º
Tilt Adjust	+4º or -4º per panel
Azimuth beamwidth	75º (×5)
Number of dipoles/sector	8
Connectors	6 × TNC 50 Ohm
Down-Converters	6 units included
LO Frequency	Selectable by internal switch
Filters	6 × 7 Cells Bandpass filters
Conversion Gain	Selectable 20 and 35 dB
Noise Figure	< 1.5 dB
Phase noise	-98 dBc/Hz @ 10 kHz
Power supply	7 to 36 V Powered by TNC connectors
