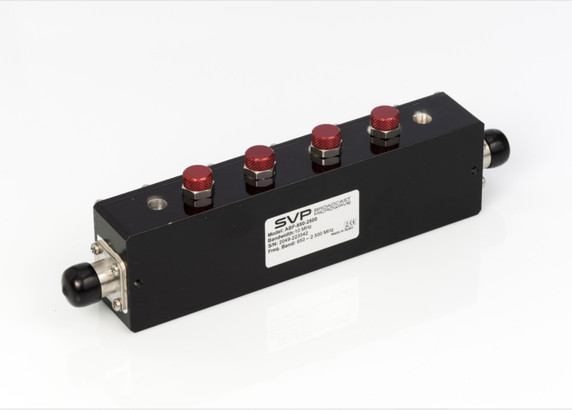

SVP Aerospace Adjustable Bandpass Filters
Product Code:
ABF
Condition:
New
Weight:
0.50 KGS
Width:
16.10
(cm)
Height:
3.30
(cm)
Depth:
6.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
SVP Aerospace can provide a broad range of RF and microwave band pass filters.
ABF bandpass filters are available for different frequency bands and of different bandwidths. Insertion losses are very low.
Bandpass filters are commonly used at the receiver site in order to delimit the band where the receiver will operate. These bandpass filters attenuate the signals out of the band and protect the down-converter from being saturated by nearby signals.
| SPECIFICATIONS | |||
| ABF-950-2500/BW10 | ABF-950-2500/BW20 | ABF-1500-2700/BW10 | |
| Frequency: | 950 to 2,500 MHz | 950 to 2,500 MHz | 1,500 to 2,700 MHz |
| Bandwidth: | 10 MHz | 20 MHz | 10 MHz |
| Insertion Loss: | C.F. < 0.89 dB (950 MHz) C.F. < 1.25 dB (2500 MHz) | C.F. < 0.56 dB (950 MHz) C.F. < 0.75dB (2500 MHz) | < 1.4 dB @C.F. |
| Connectors: | N Female N Female |
N Female N Female |
N Female N Female |
| Weight: | 0.5Kg | 0.5Kg | 0.5Kg |
| Nº of poles: | 4 | 4 | 4 |
| Adjustable | Yes | Yes | Yes |
| Size | 161 x 33 x 60 mm | 161 x 33 x 60 mm | 161 x 33 x 60 mm |
| Temperature range | -5 to 55ºC | -20 to 50ºC | -5 to 45ºC |
