SVP Aerospace

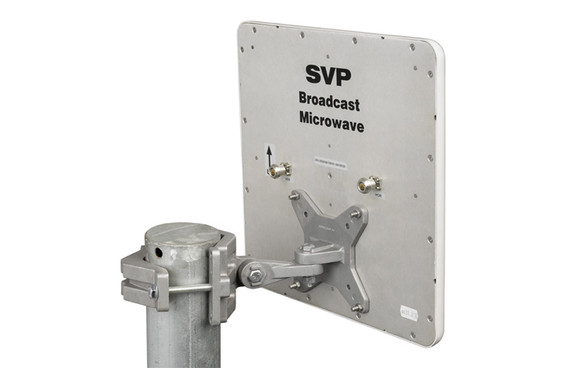

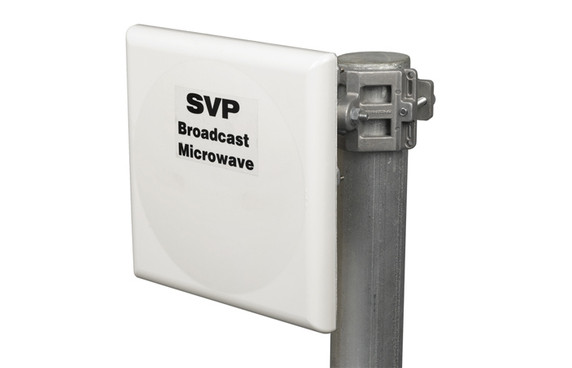

SVP Aerospace ADD-317 Narrow Beam Dual Pol Panel 3 GHz 17 dBi
Product Code:
ADD-317
Weight:
1.00 KGS
Width:
2.50
(cm)
Height:
30.50
(cm)
Depth:
30.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The ADD-317 is a dual polarization antenna, especially useful when the transmission of two simultaneous signals has to be carried out.
This antenna has a narrow radiation pattern, high gain and it works in 3 GHz band. It can be fixed in a tube or directly to the RF head of SVP’s portable links. The ADD-317 antenna is especially interesting in 1+1 configurations.
Narrow beamwidth flat panel antennas can be used as an alternative to parabolic antennas, when the weight, the size or the resistance to the wind are important.
| SPECIFICATIONS | |
| ADD-317 ANTENNA | |
| Frequency band | 3.5 GHz* |
| Bandwidth | 300 MHz |
| Gain | 17 dBi |
| Radiation pattern | 18ºH, 18ºV |
| Polarization | Double (Vertical or horizontal) |
| VSWR | Typ < 1.5 |
| Connector | 2 × SMA female |
| Size | 305 × 305 × 25 mm |
5 customers are viewing this product
Details
The ADD-317 is a dual polarization antenna, especially useful when the transmission of two simultaneous signals has to be carried out.
This antenna has a narrow radiation pattern, high gain and it works in 3 GHz band. It can be fixed in a tube or directly to the RF head of SVP’s portable links. The ADD-317 antenna is especially interesting in 1+1 configurations.
Narrow beamwidth flat panel antennas can be used as an alternative to parabolic antennas, when the weight, the size or the resistance to the wind are important.
| SPECIFICATIONS | |
| ADD-317 ANTENNA | |
| Frequency band | 3.5 GHz* |
| Bandwidth | 300 MHz |
| Gain | 17 dBi |
| Radiation pattern | 18ºH, 18ºV |
| Polarization | Double (Vertical or horizontal) |
| VSWR | Typ < 1.5 |
| Connector | 2 × SMA female |
| Size | 305 × 305 × 25 mm |
