Safran

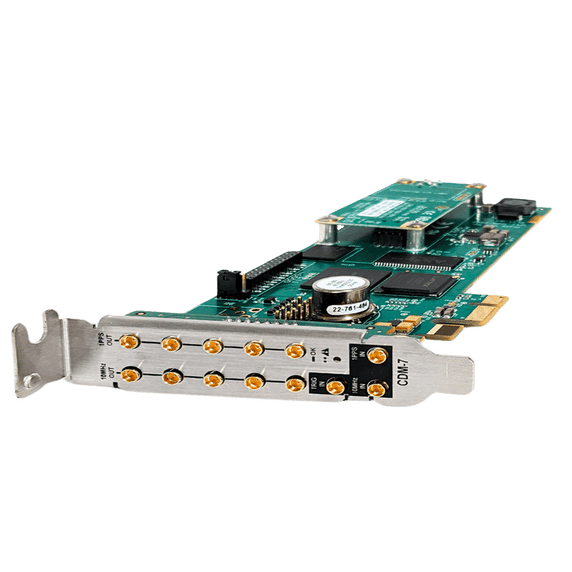

Safran CDM PCIe Timing Cards
Product Code:
CDM-7
Condition:
New
Weight:
0.15 KGS
Width:
2.50
(cm)
Height:
10.67
(cm)
Depth:
16.76
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Safran’s CDM Family of clock distribution modules are PCIe cards that provide 10MHz and 1PPS signals for up to seven devices that need tight and precise synchronization. The clock distribution module is ideal for PCIe-based Software-Defined Radios (SDR) installed in rack-mount or desktop PCs, and can also be used for any other applications that require a precise PC-based timing reference.
Which Model is Right For You?
| Product | # of Outputs | PCIe Form Factor | Operating Modes | Controllable From Application | Connectors |
| CDM-7 (Half-Height) | 5 | Rack-Mount or Desktop PC | Internal Clock (OCXO)Synchronous ExternalAsynchronous External | ✅ | MMCX |
| CDM-7 (Full Height) | 7 | Rack-Mount or Desktop PC | Internal Clock (OCXO)Synchronous ExternalAsynchronous External | ✅ | MMCX |
5 customers are viewing this product
Details
Safran’s CDM Family of clock distribution modules are PCIe cards that provide 10MHz and 1PPS signals for up to seven devices that need tight and precise synchronization. The clock distribution module is ideal for PCIe-based Software-Defined Radios (SDR) installed in rack-mount or desktop PCs, and can also be used for any other applications that require a precise PC-based timing reference.
Which Model is Right For You?
| Product | # of Outputs | PCIe Form Factor | Operating Modes | Controllable From Application | Connectors |
| CDM-7 (Half-Height) | 5 | Rack-Mount or Desktop PC | Internal Clock (OCXO)Synchronous ExternalAsynchronous External | ✅ | MMCX |
| CDM-7 (Full Height) | 7 | Rack-Mount or Desktop PC | Internal Clock (OCXO)Synchronous ExternalAsynchronous External | ✅ | MMCX |
Download
| Download Name | |
| Safran CDM PCIe Timing Cards Datasheet | |
