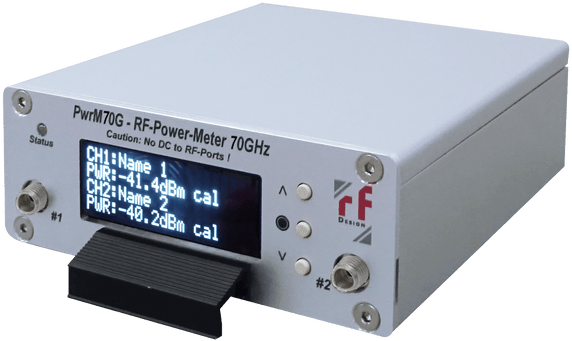

RF-Design PwrM70G Dual Channel 70GHz Power Monitor

RF-Design PwrM70G Dual Channel 70GHz Power Monitor

The PwrM70G represents a broadband power meter device perfectly suited to measure RF in C, KU, and KA Band.

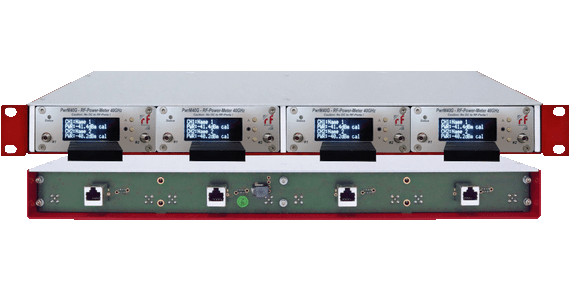

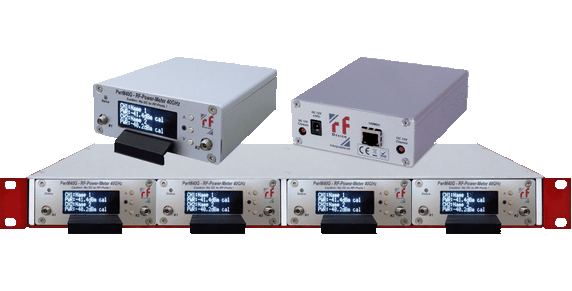

The PwrM70G is available as a compact handheld unit or a modular type 1RU/19" rack mount chassis that can hold up to 4 power meter modules. The PwrM70G is a perfect solution for broadband monitoring applications, capable of simultaneous monitoring of 2 to 8 RF signals within a frequency range of 100MHz - 70GHz.

The PwrM70G power meters provide a large dynamic range with high accuracy, assuring excellent and precise RF power monitoring at any time.

Other beneficial features such as threshold monitoring/alarming, minimum and maximum RF power monitoring and recording, along with a user-friendly chart on the WebGUI that also displays the different RF power values over a period of time (history recording) are also included. The PwrM70G has a function that allows the user to compensate for any offsets, for example, for a directional coupler and/or to calibrate the power meter at the desired frequency.

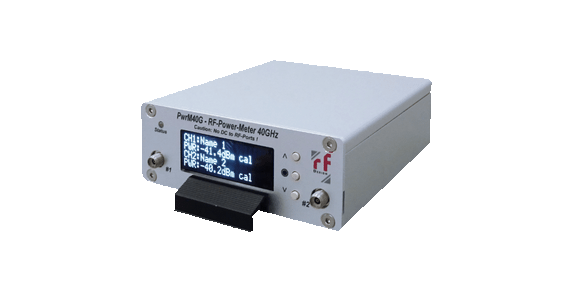

The PwrM40G has a front panel OLED display and keypads allowing easy local configuration and RF monitoring. A rear side Ethernet interface allows remote configuration and monitoring (WebGUI, SNMP).

FEATURES & BENEFITS:

• Broadband frequency range: 100MHz — 70GHz
• 43dB Dynamic Range over full band
• Available as a compact handheld module, also for integration into a 4-Slot 1RU/19" chassis
• Hot-swappable and easy replaceable in 1RU/19" chassis
• 1RU/19" chassis with integrated power supply and 4-port Ethernet switch
• Simultaneous monitoring of 2 to max. 8 signals
• Threshold monitoring and alarming
• Offset compensation for cables and directional couplers
• Minimum & Maximum RF power monitoring and recording
• Calibration feature at the desired frequency
• Local & Remote monitoring & configuration
• Ethernet-Interface (WebGUI, SNMP), chart displays with different RF power values (history recording)
