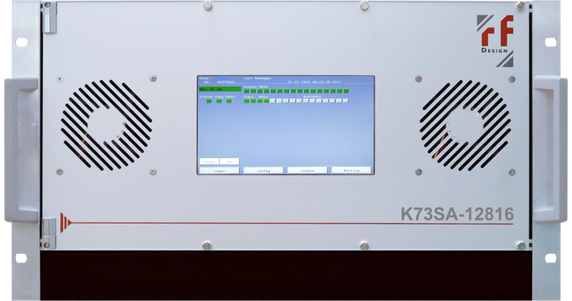

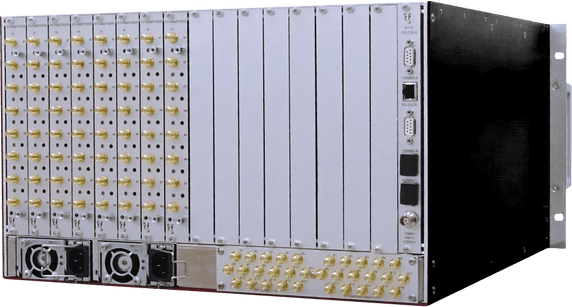

RF-Design FlexLink K73SA L-Band Switch Matrix 8:8 to 128:16
Product Code:
K73SA
Condition:
New
Weight:
45.00 KGS
Width:
48.30
(cm)
Height:
26.70
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The FlexLink K73SA-12816 a represents professional Switch Matrix system, built into a 6RU/19" rack mount chassis with only 500mm depth, supporting L-Band (950 – 2150MHz) and Extended L-Band (850 – 2450MHz) making it a perfect solution also for KU/KA-Band and HTS applications.
The system can be assembled with various input/output configurations from 8:8 to max. 128:16 simply by adding additional input/output switchboards (increments of 8). It performs as a distributive switch/routing platform allowing to switch/route any selected input to any or all outputs.
The FlexLink K73SA-12816 was especially developed to be used in measurement & monitoring system infrastructures supporting a fast switching time of 25ms, depending on the synchronizing of the measurement system.
This Switch Matrix system offers flexibility, beneficial features and superior RF performance at the highest quality level. All matrix input switch-boards are hot-swappable and besides the 8 or 16 outputs the unit also has 16 calibration loop through ports for Spectrum-Analyzer and Measurement System Calibration, supporting a frequency range down to 50MHz.
| RF Specifications | |
| Frequency Range: | 950 – 2150MHz and 850 – 2450MHz |
| Frequency Response: |
± 1,5dB L-Band; ±2,5dB extended L-Band |
| Noise Figure: | <15dB typ. |
| Insertion Loss: | 0dB – ±1,0dB max. |
| Input/Output Return Loss: | 12dB min., 14dB typ. @ L-Band* |
| Isolation: | ≥50dB @ L-Band* |
| RF Input Power: | +10dBm max. (damage level) |
| RF Output Power: | +10dBm max. (damage level) |
| Cal. Loop Through Loss: | -3dB, frequency response ± 1,5dB |
| IMA3 @ -10dBm: | <50dBc |
| P1dB: | +6dBm |
* Specifications for Extended L-Band available upon request
