RF-Design
RF-Design FiberLinkplus N+2 redundant N+1 & N+2 redundant RF-over-Fiber
Condition:
New
Availability:
YES
Weight:
7.00 KGS
Width:
48.26
(cm)
Height:
13.20
(cm)
Depth:
30.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

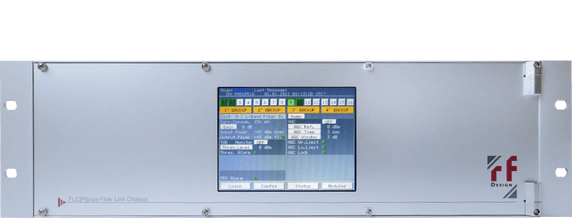

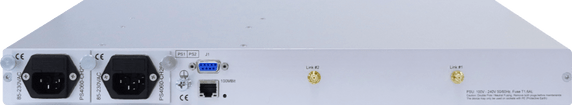

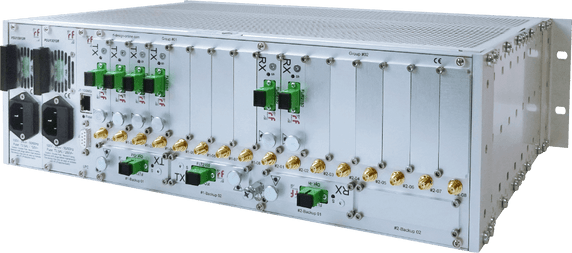

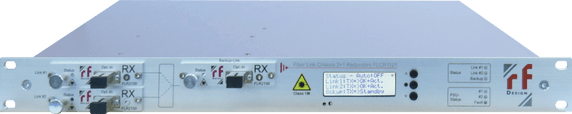

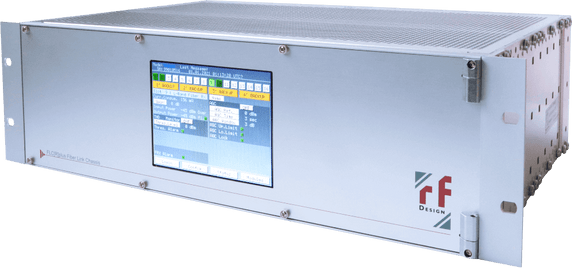

This FiberLinkplus system comes in 1RU or 3RU/19″ design, supporting versatile redundant optical transmission configurations (N+1 or N+2). It is designed for flexible, high quality and absolute secure optical transmission for 1 to 16 signals (L-Band, extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized and configured locally (LCD touchscreen) but also remotely via the Ethernet-Interface (WebGUI/SNMP). The system supports 1:1 redundant dual power supply, hot-swappable TX/RX modules, variable gain control and RF power-monitoring. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).
Features & Benefits
-
Space saving 1RU/19″ or 3RU/19″ design
-
Stable and secure signal transmission (L-Band or extended L-Band)
-
Various N+1/N+2 redundant configurations
-
Insertion of max. 16 ProLink TX and/or RX modules per chassis
-
Hot-swappable TX/RX modules
-
Supports mixed TX/RX configuration
-
Variable gain control
-
RF power monitoring
-
Local and remote configuration
-
Status LED´s
-
1:1 redundant dual power supply
5 customers are viewing this product
Details
This FiberLinkplus system comes in 1RU or 3RU/19″ design, supporting versatile redundant optical transmission configurations (N+1 or N+2). It is designed for flexible, high quality and absolute secure optical transmission for 1 to 16 signals (L-Band, extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized and configured locally (LCD touchscreen) but also remotely via the Ethernet-Interface (WebGUI/SNMP). The system supports 1:1 redundant dual power supply, hot-swappable TX/RX modules, variable gain control and RF power-monitoring. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).
Features & Benefits
-
Space saving 1RU/19″ or 3RU/19″ design
-
Stable and secure signal transmission (L-Band or extended L-Band)
-
Various N+1/N+2 redundant configurations
-
Insertion of max. 16 ProLink TX and/or RX modules per chassis
-
Hot-swappable TX/RX modules
-
Supports mixed TX/RX configuration
-
Variable gain control
-
RF power monitoring
-
Local and remote configuration
-
Status LED´s
-
1:1 redundant dual power supply
