RF-Design

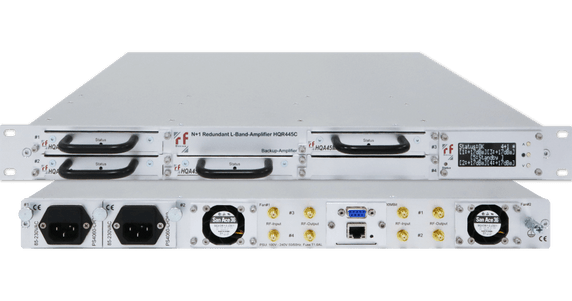

RF-Design HQR445C N+1 redundant L-Band Line Amplifier, 1+1 to 4+1 (variable gain 0 to 40dB)
Product Code:
HQR445C
Condition:
New
Availability:
YES
Weight:
7.00 KGS
Width:
48.26
(cm)
Height:
4.40
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The HQR445C is a compact, flexible and modular N+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 40dB (1dB steps) while it also supports slope equalization so to achieve best performance within the RF distribution chain.
The HQR445C chassis holds up to five high dynamic HQA45MG amplifier modules (950 – 2150MHz or 850 – 2700MHz) thus allowing an amplifier redundancy operation from 1+1 to max. 4+1 (field expandable, hot-swappable).
Features & Benefits
- Space saving and compact 1RU/19″ rack mount design
- Supports L-Band (950 – 2150MHz) and extended L-Band (850 – 2700MHz)
- Allows amplifier redundancy configuration from 1+1 to max. 4+1 (field expandable, hot-swappable)
- Modular concept for ease of replacement and maintenance
- Variable gain adjust 0 to 40dB, 1dB steps (MGC/AGC)
- RF power monitoring for all amplifier modules (Input & Output)
- Threshold alarm function and switchable output limiter
- 1:1 redundant dual power supply (hot-swappable)
- MTTF Counter and warning function for power supplies
- Temperature controlled fan speed operation
- Local configuration and monitoring via front panel OLED display & keypads
- Remote configuration and monitoring via Ethernet-Interface, (WebGUI/ SNMPv2c)
5 customers are viewing this product
Details
The HQR445C is a compact, flexible and modular N+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 40dB (1dB steps) while it also supports slope equalization so to achieve best performance within the RF distribution chain.
The HQR445C chassis holds up to five high dynamic HQA45MG amplifier modules (950 – 2150MHz or 850 – 2700MHz) thus allowing an amplifier redundancy operation from 1+1 to max. 4+1 (field expandable, hot-swappable).
Features & Benefits
- Space saving and compact 1RU/19″ rack mount design
- Supports L-Band (950 – 2150MHz) and extended L-Band (850 – 2700MHz)
- Allows amplifier redundancy configuration from 1+1 to max. 4+1 (field expandable, hot-swappable)
- Modular concept for ease of replacement and maintenance
- Variable gain adjust 0 to 40dB, 1dB steps (MGC/AGC)
- RF power monitoring for all amplifier modules (Input & Output)
- Threshold alarm function and switchable output limiter
- 1:1 redundant dual power supply (hot-swappable)
- MTTF Counter and warning function for power supplies
- Temperature controlled fan speed operation
- Local configuration and monitoring via front panel OLED display & keypads
- Remote configuration and monitoring via Ethernet-Interface, (WebGUI/ SNMPv2c)
Download
| Download Name | |
| RF-Design HQR445C Datasheet | |
