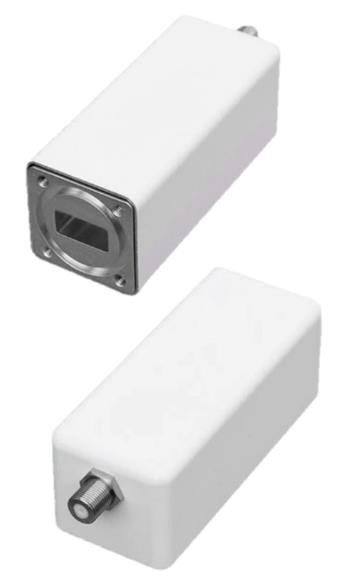

RevGo RGLN-Uab03c-A0 Low Noise Block (LNB) Ku-Band
Product Code:
RGLN-Uab03c-A0
Condition:
New
Weight:
0.24 KGS
Width:
9.40
(cm)
Height:
4.00
(cm)
Depth:
4.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
RevGo designs and manufactures satellite earth station RF from low to high power. RevGo was founded in 2002 with its headquarters in the Washington DC corridor. RevGo’s broad VSAT product line is produced to stringent quality standards using an ISO9001:2015 quality system:
- Block up-converter (BUC)
- Low noise block (LNB)
- Transceiver (Tx/Rx/OMT/filters)
- C-, Ku-, DBS-, Ka-bands
- 3 to 1000W output power
Reliability
- Highly integrated RF technologies (RFIC and GaN)
- Designed for high volume production
- Strict quality control processes resulting in <0.25% field failure rates
Product Features
- Noise Figure: 0.8 dB typ., 1.0 dB max.
- Single-band and Dual-band optional
Dual-band: *Switched by voltage* or *Switched by 22 KHz*
- PLL design, LO Stability: ±3 ppm
- Low phase noise
- Rugged design for extreme environments (-40 to +60oC)
5 customers are viewing this product
Details
RevGo designs and manufactures satellite earth station RF from low to high power. RevGo was founded in 2002 with its headquarters in the Washington DC corridor. RevGo’s broad VSAT product line is produced to stringent quality standards using an ISO9001:2015 quality system:
- Block up-converter (BUC)
- Low noise block (LNB)
- Transceiver (Tx/Rx/OMT/filters)
- C-, Ku-, DBS-, Ka-bands
- 3 to 1000W output power
Reliability
- Highly integrated RF technologies (RFIC and GaN)
- Designed for high volume production
- Strict quality control processes resulting in <0.25% field failure rates
Product Features
- Noise Figure: 0.8 dB typ., 1.0 dB max.
- Single-band and Dual-band optional
Dual-band: *Switched by voltage* or *Switched by 22 KHz*
- PLL design, LO Stability: ±3 ppm
- Low phase noise
- Rugged design for extreme environments (-40 to +60oC)
