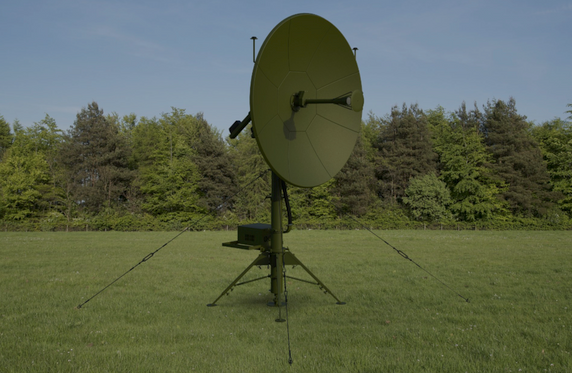

Requtech TROPOLINE 240 auto-point troposcatter terminal

No reviews yet
Product Code: RQ-TP-240
Condition: New
Weight: 425.00 KGS
Width: 130.00 (cm)
Height: 160.00 (cm)
Depth: 70.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

The TROPOLINE 240 auto-point troposcatter terminal boasts a comprehensive MIL-STD810-compliant design and is a lightweight, easy-to-use Flyaway for C-band communication over long distances. Two operators can deploy it in typically 20 minutes. This 2.4m fully automated motorized troposcatter and line-of-sight (LOS) flyaway terminal with a military-grade pneumatic mast with a quadpod base for high stability. The system comes complete with a hand pump for easy mast deployment and extension to 3m to clear obstacles and with the RAPU sensor kid module.

Key Features:

Fully integrated Troposcatter terminal

2.4 m segmented carbon fiber reflector with integrated modem, SSPA, and LNB. With military Grade Light Weight Aluminium Pneumatic Mast with hand pump extendable to 3m

Rapid deployment in the harshest conditions

Patented smart integrated ACU with orientation sensors for auto-pointing

Lightest in class

At only 425 kg for a fully integrated system

Only European-made Troposcatter solution

TROPOLINE240 is one of few globally and the only European Troposcatter flyaway solution

Toolless assembly

Allows for rapid deployment by two fully kitted operators typically in 20 minutes

Ruggedized design for any environment

Designed for MIL-STD-810 compliance and delivered in robust packing cases

TECHNICAL SPECIFICATIONS

Frequency 4.4 GHz to 5.0 GHz
Diameter 2.4 m
Antenna Efficiency > 60%
VSWR ≤ 1.3 : 1
RF Power Handling 2 kW CW (Amp. not part of product)
Antenna Gain 40 dB minimum @ 5 GHz
Compliance ITU-R F.699 radiation pattern recommendation, CE 2014/30/UE
Elevation Range −5° to +45°
Azimuth Range ±90° (full mast extension, light wind) / ±30° (with guys & flex-WG mounted)
Polarization Skew ±100°, motorized
Pointing Accuracy ±0.2° (Azimuth & Elevation)
Monitor / Control Via GUI and SNMP
Input Power 24/48 VDC
Mast Height 1.5 m retracted / 3 m extended
Packing Cases RF & reflector: 5 robust IP65 cases (≤ 70 kg/case); Mast: 5 military-grade bags

ENVIRONMENTAL DETAILS

Operational Temperature -20°C to +50°C
                          Wind
– Operational Up to 50 mph (80 km/h), gusting to 67 mph (108 km/h) when properly guyed down
 – During deployment 25 mph (40 km/h) with gusts up to 34 mph (54 km/h)
 – Survival 87 mph (140 km/h), guyed down and mast retracted
