Requtech

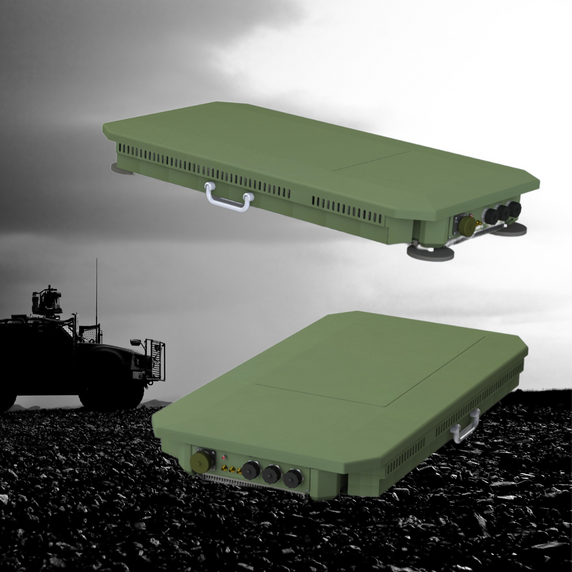

Requtech RESA L, Ka-Band array antenna terminal
Product Code:
RESA-KA-L
Condition:
New
Weight:
27.00 KGS
Width:
45.00
(cm)
Height:
81.00
(cm)
Depth:
11.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
RESA L Ka is a fully integrated Electronically scanned array antenna terminal for LEO, MEO or GEO constellations for on-the-move and on-the-pause applications. This ruggedized terminal is MIL-STD designed with Field replaceable fan bays for all-weather IP66 operations for high reliability and high throughput with efficient acquisition and tracking algorithms. The fully electronically steered solution results in the lowest Size, Weight, and Power for Maximum Performance.
RESA series supports Marine, Vehicle & Portable applications.
Key Features:
Fully integrated SATCOM terminal
OpenAIMP supported to be delivered with any modem and BUC configurations
Rapid deployment in the harshest conditions
Patented smart integrated ACU for rapid satellite acquisition
Mesh networking of several devices supported
Stay connected even with a semi-blocked field view
Instantaneous connection
Precise tracking and seamless satellite switchover
Only 27kg
The lowest SWaP ESA terminal
Ruggedized design for any environment
Designed to be challenged whether its at sea or land
|
TECHNICAL SPECIFICATIONS |
|
| TX Frequency | 27.5-31.0 GHz |
| RX Frequency | 17.7-21.2 GHz |
| G/T, typical (boresight) | 13 dB/K |
| Linear EIRP (boresight) | 49 dBW |
| Polarity | Circular (electronically switched) |
| Tx XPD | 25 dB |
| Rx XPD | 25 dB |
|
ELECTRONIC SCANNING SPECIFICATIONS |
|
| Tracking error | < 0.05 dB |
| Beam update rate |
100 Hz |
| Pointing Accuracy | 0.1° |
| Azimuth adjustment | 360° with a pointing step size of 0.1° |
| Elevation adjustment | 10° to 90 |
5 customers are viewing this product
Details
RESA L Ka is a fully integrated Electronically scanned array antenna terminal for LEO, MEO or GEO constellations for on-the-move and on-the-pause applications. This ruggedized terminal is MIL-STD designed with Field replaceable fan bays for all-weather IP66 operations for high reliability and high throughput with efficient acquisition and tracking algorithms. The fully electronically steered solution results in the lowest Size, Weight, and Power for Maximum Performance.
RESA series supports Marine, Vehicle & Portable applications.
Key Features:
Fully integrated SATCOM terminal
OpenAIMP supported to be delivered with any modem and BUC configurations
Rapid deployment in the harshest conditions
Patented smart integrated ACU for rapid satellite acquisition
Mesh networking of several devices supported
Stay connected even with a semi-blocked field view
Instantaneous connection
Precise tracking and seamless satellite switchover
Only 27kg
The lowest SWaP ESA terminal
Ruggedized design for any environment
Designed to be challenged whether its at sea or land
|
TECHNICAL SPECIFICATIONS |
|
| TX Frequency | 27.5-31.0 GHz |
| RX Frequency | 17.7-21.2 GHz |
| G/T, typical (boresight) | 13 dB/K |
| Linear EIRP (boresight) | 49 dBW |
| Polarity | Circular (electronically switched) |
| Tx XPD | 25 dB |
| Rx XPD | 25 dB |
|
ELECTRONIC SCANNING SPECIFICATIONS |
|
| Tracking error | < 0.05 dB |
| Beam update rate |
100 Hz |
| Pointing Accuracy | 0.1° |
| Azimuth adjustment | 360° with a pointing step size of 0.1° |
| Elevation adjustment | 10° to 90 |
