Requtech
Requtech PICO240m 2.4m manual flyaway SATCOM terminal
Product Code:
PICO-240-M
Condition:
New
Weight:
335.00 KGS
Width:
260.00
(cm)
Height:
260.00
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The PICO240 is a 2.4m fully integrated flyaway terminal that is meticulously engineered for versatility and robust performance across X, C, Ku, and Ka-bands. This system boasts a comprehensive MIL-STD-810-compliant design and is also compliant with the requirements of ITU-R S.465 and the EUTELSAT ESOG120 standards. At the heart of the system lies the RAPU Unit that contains the ACU, Beacon receiver, control, monitor, and sensor kit module with Mercury app for rapid satellite acquisition.
Key Features:
Fully integrated flyaway SATCOM terminal
2.4 m segmented carbon fiber reflector with OpenAMIP supported to be delivered with any modem, BUC and LNB configuration
Rapid deployment in the harshest conditions
Patented smart integrated ACU, Beacon receiver, control, monitor and sensor kit module with Mercury app for rapid satellite acquisition
High-performance interchangeable feeds
PICO feed system allows for easy swap between C, Ku, Ka, and X-band, interoperable across all PICO terminals
Robust motorization version available
With zero-backlash sealed Azimuth and Elevation Motors (auto)
Toolless assembly
Allows for rapid deployment by fully kitted operator
Ruggedized design for any environment
ITU-R S.465 and EUTELSAT ESOG120 compliant with design for MIL-STD-810 compliance and delivered in robust packing cases
| Technical Specifications | ||||
| Ku- Band | X- Band | Ka- Band | C-Band | |
| Transceivers |
ReQuTech feed specification Ku-band Horn, OMT and filters for optional BUC and LNB |
ReQuTech feed specification X-band Horn, OMT and filters for optional BUC and LNB |
ReOuTech feed specification 2 port or 4 port,Feed systems for optional BUC and LNB |
C-band Horn, OMTand filters for optionalBUC and LNB |
| TX Frequency | 13.75-14.5 GHz | 7.9-8.4 GHz | 27.5-30.0 GHz or29-31GHz | 5.85-6.425 GHz |
| RX Frequency | 10.7-12.75 GHz | 7.25-7.75 GHz | 17.7-20.2 GHz or19.2-21.2 GH: | 3.625-4.2 GHz |
| EIRP | 65.8 dBW (50W BUC)68.0 dBW (80W BUC) | 63.6 dBW (80 W BUC)64.5 dBW (100w BUC) | 68.6 dBW (20W BUC)70.4 dBW (30W BUC) | 54.8 dBW (20W BUC)60.8 dBW (80W BUC) |
| Polarity | Linear, mechanical skew adjustment | Circular RHCP/LHCP, mechanical pol. change | Circular RHCP / LHCP, mechanical pol. change | Circular RHCP /LHCP. mechanical pol.change |
| Flange for connections | WR75 | WR112 | WR28 (Tx)WR42 (Rx) | WR28 WR42 |
| Return-loss Tx/Rx | 20 dB | 20 dB | 20 dB | 20 dB |
| Isolation Tx-Rx | 80 dB | 110 dB | 100 dB | 110 dB |
| Tx gain @midband | 49.8 dBi | 45.0 dBi | 56.1 dBi | 42.1 dBi |
| Rx gain @midband | 48.2 dBi | 44.1 dBi | 52.4 dBi | 38.1 dBi |
5 customers are viewing this product
Details
The PICO240 is a 2.4m fully integrated flyaway terminal that is meticulously engineered for versatility and robust performance across X, C, Ku, and Ka-bands. This system boasts a comprehensive MIL-STD-810-compliant design and is also compliant with the requirements of ITU-R S.465 and the EUTELSAT ESOG120 standards. At the heart of the system lies the RAPU Unit that contains the ACU, Beacon receiver, control, monitor, and sensor kit module with Mercury app for rapid satellite acquisition.
Key Features:
Fully integrated flyaway SATCOM terminal
2.4 m segmented carbon fiber reflector with OpenAMIP supported to be delivered with any modem, BUC and LNB configuration
Rapid deployment in the harshest conditions
Patented smart integrated ACU, Beacon receiver, control, monitor and sensor kit module with Mercury app for rapid satellite acquisition
High-performance interchangeable feeds
PICO feed system allows for easy swap between C, Ku, Ka, and X-band, interoperable across all PICO terminals
Robust motorization version available
With zero-backlash sealed Azimuth and Elevation Motors (auto)
Toolless assembly
Allows for rapid deployment by fully kitted operator
Ruggedized design for any environment
ITU-R S.465 and EUTELSAT ESOG120 compliant with design for MIL-STD-810 compliance and delivered in robust packing cases
| Technical Specifications | ||||
| Ku- Band | X- Band | Ka- Band | C-Band | |
| Transceivers |
ReQuTech feed specification Ku-band Horn, OMT and filters for optional BUC and LNB |
ReQuTech feed specification X-band Horn, OMT and filters for optional BUC and LNB |
ReOuTech feed specification 2 port or 4 port,Feed systems for optional BUC and LNB |
C-band Horn, OMTand filters for optionalBUC and LNB |
| TX Frequency | 13.75-14.5 GHz | 7.9-8.4 GHz | 27.5-30.0 GHz or29-31GHz | 5.85-6.425 GHz |
| RX Frequency | 10.7-12.75 GHz | 7.25-7.75 GHz | 17.7-20.2 GHz or19.2-21.2 GH: | 3.625-4.2 GHz |
| EIRP | 65.8 dBW (50W BUC)68.0 dBW (80W BUC) | 63.6 dBW (80 W BUC)64.5 dBW (100w BUC) | 68.6 dBW (20W BUC)70.4 dBW (30W BUC) | 54.8 dBW (20W BUC)60.8 dBW (80W BUC) |
| Polarity | Linear, mechanical skew adjustment | Circular RHCP/LHCP, mechanical pol. change | Circular RHCP / LHCP, mechanical pol. change | Circular RHCP /LHCP. mechanical pol.change |
| Flange for connections | WR75 | WR112 | WR28 (Tx)WR42 (Rx) | WR28 WR42 |
| Return-loss Tx/Rx | 20 dB | 20 dB | 20 dB | 20 dB |
| Isolation Tx-Rx | 80 dB | 110 dB | 100 dB | 110 dB |
| Tx gain @midband | 49.8 dBi | 45.0 dBi | 56.1 dBi | 42.1 dBi |
| Rx gain @midband | 48.2 dBi | 44.1 dBi | 52.4 dBi | 38.1 dBi |
Related Products
Norsat International Inc.

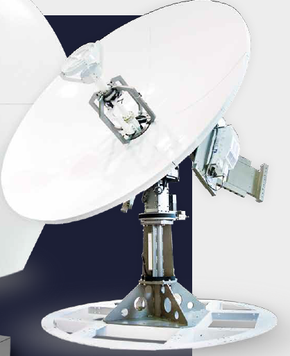

Norsat WFM240CD WAYFARER 2.4m C-Band Manual Flyaway Antenna - Dual Offset
