PROMAX

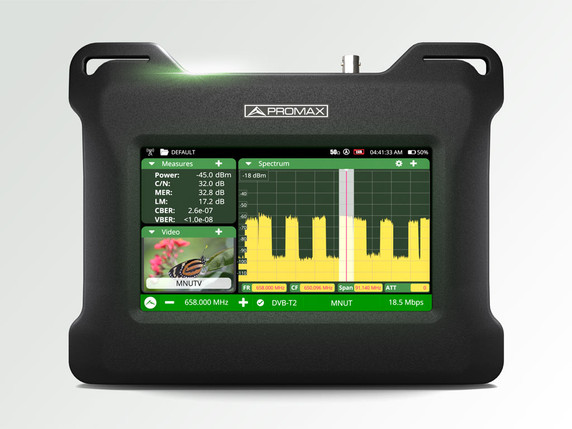

PROMAX TV EXPLORER NG Portable TV & Satellite Field Meter (DVB)
Product Code:
TV EXPLORER NG
Weight:
2.00 KGS
Width:
27.50
(cm)
Height:
19.50
(cm)
Depth:
4.50
(cm)
$3,354.17
The TV EXPLORER NG is the brand new version of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with Ultra HD-4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers support for the most recent broadcasting standards.
With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.
Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (optionally including DVB-S2x), ISDB-T/Tb and optionally ATSC 1.0 and ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.
Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).
| SPECIFICATIONS | TV EXPLORER NG - MULTISTANDARD UNIVERSAL TV ANALYZER |
| BROADCAST STANDARDS | DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1sec) DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional) Analogue terrestrial (PAL, SECAM, NTSC) |
| AUDIO CODECS | MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital (DD), Dolby Digital Plus (DD+), Dolby AC-4 |
| VIDEO CODECS | MPEG-2, MPEG-4 / H.264 (CBP, MP, High Profile Level 5.2), HEVC / H.265 4k UHD (Main Profile Level 5.1 8b/10b) |
| INPUTS AND OUTPUTS | - Universal RF input (F-type, 75 Ω) - Analogue audio/video input (jack 3.5 mm) - HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) - USB 2.0 master/device (Type C). Mass storage and remote control commands - Ethernet (RJ45) for webControl and remote control commands - Optical input (FC/APC, female) - Stereo headphone audio output (jack 3.5 mm) - USB 3.0 host (A-type, USB-CDC devices) |
| FUNCTIONS | - Constellation diagram - Dynamic echoes analysis - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast Spectrum analyzer - 4K decoder - MAX and MIN hold - FM RDS measurement and decoding (optional) - Screenshots and Datalogger for measurement reports - WiFi - Remote control (webControl) - MER by carrier - Drive test signal coverage analysis with GPS (optional) - TS recording - ALP recording - Full band optical power measurement - 8 GB internal memory, expandable vía USB - FM stations discovering (optional). - Blind Scan search.K10 |
| SPECTRUM ANALYZER Noise floor Reference level Dyamic margin Span Resolution bandwidths Measurement functions |
From 5 to 1000 MHz (Terrestrial) / From 950 to 2150 MHz (Satellite) 10 dBµV 130 dBµV max. 60 dB User-defined / 10 / 20 / 50 / 100 / 200 / 500 / 850 MHz / Full span (depending on band) 100 kHz Power measurement, C/N measurement, MAX/MIN Hold, heat map |
| MEASUREMENT MODE | |
| DVB-T (COFDM) DVB-T2 Base y Lite (COFDM) ISDB-T (COFDM) DVB-C (QAM) DVB-C2 (QAM) J83 Annex B (QAM) ATSC 1.0 (8VSB) ATSC 3.0 (COFDM) DVB-S (QPSK) DVB-S2 (QPSK, 8PSK 16/32 APSK) DVB-S2x (QPSK, 8PSK, 8/16/32/64/128/256 APSK/APSK-L) DSS (QPSK) PAL, SECAM y NTSC (analog TV) FM RDS radio (optional) DAB/DAB+ radio (optional) |
Power (20 dBμV - 130 dBμV), CBER, VBER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, Iteraciones LDP, Wrong packets Power (20 dBμV - 130 dBμV), CBER, VBER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), BER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), CBER, MER, C/N, LBER, BCH ESR, Iteraciones LDP, Wrong packets Power (20 dBμV - 130 dBμV), BER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), SER, VBER, MER, Wrong packets, C/N, Link Margin Power (20 dBμV - 130 dBμV), CBER, MER, Wrong packets, C/N, LBER, BCH ESR Power (35 dBμV - 127 dBμV), CBER, VBER, MER, C/N, Link Margin Power (35 dBμV - 127 dBμV), CBER, LBER, MER, Wrong packets, C/N, BCH ESR, Link Margin Power (35 dBμV - 127 dBμV), CBER, LBER, MER, Wrong packets, C/N, BCH ESR, Link Margin Power (35 dBμV - 115 dBμV), CBER, VBER, MER, C/N, Wrong packets, Noise margin Level, C/N, V/A (M/N/B/G/I/D/K/L) MPX Deviation and Power, Level, C/N, Offset, Bandwidth, Frequency deviation (Left, Right, Left+Right, Left-Right, MPX, RDS, Pilot), Level (Left, Right, Left-Right, Left+Right MPX), RDS data Power, C/N, MER, CBER, MSC CBER, FIC CBER, FIB RATIO, Offset, Bandwidth |
| OPERATING MODES TV analyzer WiFi 802.11 ac/a/b/g/n Monitor TV |
WiFi dongle. RSSI, Access point occupancy, SNR, Noise |
| INTERNAL STORAGE | 8 GB for measurement protocols, screenshots and transport stream recordings |
| REMOTE CONTOL | Remote commands. webControl interface (IP control input and WiFi) and SNMP protocol (IP control input and WiFi) |
| GENERAL | Color 7” TFT 16:9 screen. Multitouch user interface. DiSEqC 2.x generator (DiSEqC 1.2 commands implemented). dCSS/SCD2 (EN50607) and SATCR/SCD (EN50494) |
| POWER SUPPLY | > 4 h with Smart power management |
| OPTIONS | ATSC 1.0 and ATSC 3.0 standards. Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements Signal coverage analysis (drive test) with GPS |
5 customers are viewing this product
Details
The TV EXPLORER NG is the brand new version of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with Ultra HD-4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers support for the most recent broadcasting standards.
With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.
Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (optionally including DVB-S2x), ISDB-T/Tb and optionally ATSC 1.0 and ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.
Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).
| SPECIFICATIONS | TV EXPLORER NG - MULTISTANDARD UNIVERSAL TV ANALYZER |
| BROADCAST STANDARDS | DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1sec) DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional) Analogue terrestrial (PAL, SECAM, NTSC) |
| AUDIO CODECS | MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital (DD), Dolby Digital Plus (DD+), Dolby AC-4 |
| VIDEO CODECS | MPEG-2, MPEG-4 / H.264 (CBP, MP, High Profile Level 5.2), HEVC / H.265 4k UHD (Main Profile Level 5.1 8b/10b) |
| INPUTS AND OUTPUTS | - Universal RF input (F-type, 75 Ω) - Analogue audio/video input (jack 3.5 mm) - HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) - USB 2.0 master/device (Type C). Mass storage and remote control commands - Ethernet (RJ45) for webControl and remote control commands - Optical input (FC/APC, female) - Stereo headphone audio output (jack 3.5 mm) - USB 3.0 host (A-type, USB-CDC devices) |
| FUNCTIONS | - Constellation diagram - Dynamic echoes analysis - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast Spectrum analyzer - 4K decoder - MAX and MIN hold - FM RDS measurement and decoding (optional) - Screenshots and Datalogger for measurement reports - WiFi - Remote control (webControl) - MER by carrier - Drive test signal coverage analysis with GPS (optional) - TS recording - ALP recording - Full band optical power measurement - 8 GB internal memory, expandable vía USB - FM stations discovering (optional). - Blind Scan search.K10 |
| SPECTRUM ANALYZER Noise floor Reference level Dyamic margin Span Resolution bandwidths Measurement functions |
From 5 to 1000 MHz (Terrestrial) / From 950 to 2150 MHz (Satellite) 10 dBµV 130 dBµV max. 60 dB User-defined / 10 / 20 / 50 / 100 / 200 / 500 / 850 MHz / Full span (depending on band) 100 kHz Power measurement, C/N measurement, MAX/MIN Hold, heat map |
| MEASUREMENT MODE | |
| DVB-T (COFDM) DVB-T2 Base y Lite (COFDM) ISDB-T (COFDM) DVB-C (QAM) DVB-C2 (QAM) J83 Annex B (QAM) ATSC 1.0 (8VSB) ATSC 3.0 (COFDM) DVB-S (QPSK) DVB-S2 (QPSK, 8PSK 16/32 APSK) DVB-S2x (QPSK, 8PSK, 8/16/32/64/128/256 APSK/APSK-L) DSS (QPSK) PAL, SECAM y NTSC (analog TV) FM RDS radio (optional) DAB/DAB+ radio (optional) |
Power (20 dBμV - 130 dBμV), CBER, VBER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, Iteraciones LDP, Wrong packets Power (20 dBμV - 130 dBμV), CBER, VBER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), BER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), CBER, MER, C/N, LBER, BCH ESR, Iteraciones LDP, Wrong packets Power (20 dBμV - 130 dBμV), BER, MER, C/N, Wrong packets, Link Margin Power (20 dBμV - 130 dBμV), SER, VBER, MER, Wrong packets, C/N, Link Margin Power (20 dBμV - 130 dBμV), CBER, MER, Wrong packets, C/N, LBER, BCH ESR Power (35 dBμV - 127 dBμV), CBER, VBER, MER, C/N, Link Margin Power (35 dBμV - 127 dBμV), CBER, LBER, MER, Wrong packets, C/N, BCH ESR, Link Margin Power (35 dBμV - 127 dBμV), CBER, LBER, MER, Wrong packets, C/N, BCH ESR, Link Margin Power (35 dBμV - 115 dBμV), CBER, VBER, MER, C/N, Wrong packets, Noise margin Level, C/N, V/A (M/N/B/G/I/D/K/L) MPX Deviation and Power, Level, C/N, Offset, Bandwidth, Frequency deviation (Left, Right, Left+Right, Left-Right, MPX, RDS, Pilot), Level (Left, Right, Left-Right, Left+Right MPX), RDS data Power, C/N, MER, CBER, MSC CBER, FIC CBER, FIB RATIO, Offset, Bandwidth |
| OPERATING MODES TV analyzer WiFi 802.11 ac/a/b/g/n Monitor TV |
WiFi dongle. RSSI, Access point occupancy, SNR, Noise |
| INTERNAL STORAGE | 8 GB for measurement protocols, screenshots and transport stream recordings |
| REMOTE CONTOL | Remote commands. webControl interface (IP control input and WiFi) and SNMP protocol (IP control input and WiFi) |
| GENERAL | Color 7” TFT 16:9 screen. Multitouch user interface. DiSEqC 2.x generator (DiSEqC 1.2 commands implemented). dCSS/SCD2 (EN50607) and SATCR/SCD (EN50494) |
| POWER SUPPLY | > 4 h with Smart power management |
| OPTIONS | ATSC 1.0 and ATSC 3.0 standards. Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements Signal coverage analysis (drive test) with GPS |
