PROMAX

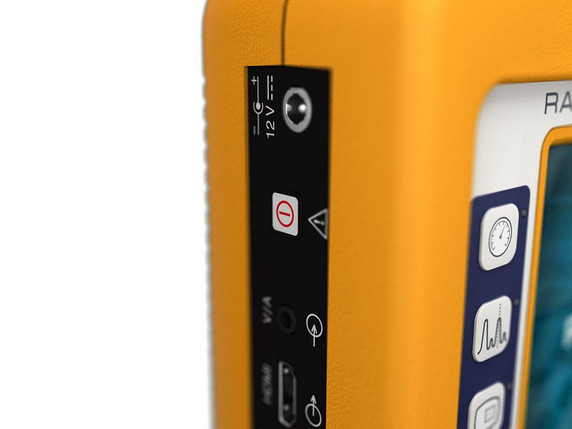

PROMAX RANGERNeo +: Multifunction TV signal and spectrum analyzer (advanced class)
Product Code:
RANGERNeo +
Condition:
New
Weight:
2.20 KGS
Width:
29.00
(cm)
Height:
18.50
(cm)
Depth:
9.50
(cm)
$6,220.45
The RANGER Neo + is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.
| Technical Specifications | |
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | ISDB-T/Tb QAM annex B DVB-C DVB-S, DVB-S2, DVB-S2 multistream ISDB-T/Tb DSS, ACM/VCM/CCM |
| VIDEO CODECS | MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus |
| INPUTS AND OUTPUTS | Universal RF connector 75 Ω HDMI™ output IP input for remote control Analogue Video/Audio input 2xUSB for data tranferring |
| FUNCTIONS | 4K detection Constellation diagram LTE ingress test StealthID (instant identification of tuning parameters) PLS (Physical Layer Scrambling) Ultra fast spectrum analyzer (70 ms sweep time) 4K Frame grabber MAX and MIN hold FM RDS radio meas. and decoding Screenshots and Datalogger for measurement reports Beacon-Flyaways SNG and VSAT Wideband LNB WiFi 2.4 GHz LTE 1.8 GHz OTT Service recording Field strength measurement Task planner HbbTV information DAB+ channel plan included Spectrogram Signal monitoring Remote control (webControl) GPS coverage analysis (optional) Video/Audio Streaming SCAN+TILT Shoulder attenuation |
| RESOLUTION BANDWIDTHS | 100, 200 kHz 1 MHz |
| OPTIONS | GPS Coverage Analysis Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input |
| PC CONNECTION (via ethernet interface) | NetUpdate 4 (free software) Free and automatic firmware updates Remote control (webserver) User customised channel plans Measurement reports and screenshots |
5 customers are viewing this product
Details
The RANGER Neo + is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.
| Technical Specifications | |
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | ISDB-T/Tb QAM annex B DVB-C DVB-S, DVB-S2, DVB-S2 multistream ISDB-T/Tb DSS, ACM/VCM/CCM |
| VIDEO CODECS | MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus |
| INPUTS AND OUTPUTS | Universal RF connector 75 Ω HDMI™ output IP input for remote control Analogue Video/Audio input 2xUSB for data tranferring |
| FUNCTIONS | 4K detection Constellation diagram LTE ingress test StealthID (instant identification of tuning parameters) PLS (Physical Layer Scrambling) Ultra fast spectrum analyzer (70 ms sweep time) 4K Frame grabber MAX and MIN hold FM RDS radio meas. and decoding Screenshots and Datalogger for measurement reports Beacon-Flyaways SNG and VSAT Wideband LNB WiFi 2.4 GHz LTE 1.8 GHz OTT Service recording Field strength measurement Task planner HbbTV information DAB+ channel plan included Spectrogram Signal monitoring Remote control (webControl) GPS coverage analysis (optional) Video/Audio Streaming SCAN+TILT Shoulder attenuation |
| RESOLUTION BANDWIDTHS | 100, 200 kHz 1 MHz |
| OPTIONS | GPS Coverage Analysis Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input |
| PC CONNECTION (via ethernet interface) | NetUpdate 4 (free software) Free and automatic firmware updates Remote control (webserver) User customised channel plans Measurement reports and screenshots |
