PROMAX

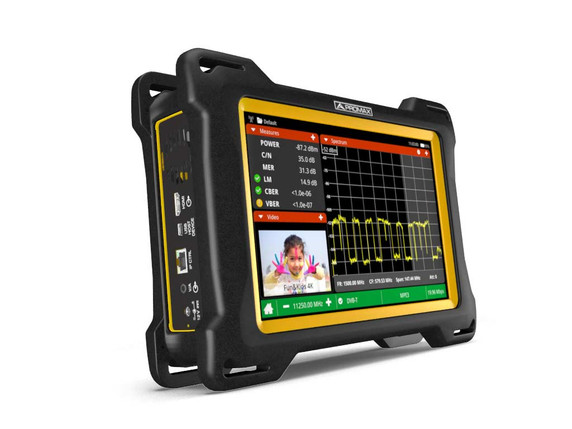

PROMAX ATLAS IP Portable Broadcast analyser for Multicast/Unicast IPTV, SRT, SD/HD/3G-SDI, ASI-TS
Product Code:
ATLaS IP
Weight:
3.40 KGS
Width:
30.40
(cm)
Height:
21.80
(cm)
Depth:
8.30
(cm)
$7,989.02
ATLAS IP is a portable IPTV analyzer for broadcast environments with three operating modes: IPTV multicast/unicast, SD/HD/3G-SDI and ASI-TS (with TS, T2MI and BTS support). The omnipresence of IP technology in the broadcast industry makes it compulsory for an analyzer to be capable of feeding from IPTV signals and monitor them. Therefore, it becomes essential to have at hand a tester that can monitor and picture IPTV streams.
Includes the most commonly used codecs in broadcasting, including 10-bit H.265 4K UHD for video and Dolby AC4 for audio.
The 3G-SDI input to run a full 3G-SDI signal diagnosis, including a professional audio meter and eye diagram, and features an external SDI input for that task, other than the standard ASI input and output.
Thanks to SRT protocol support, as well as optional ST 2110 protocol support and communication with network elements such as the master clock, the ATLAS IP helps ensure the correct operation of live broadcast links and studio productions.
The multitouch user interface based on customizable docking pannels ensures an improved user experience, making it simpler than ever to utilize a broadcast analyzer of this nature.
| TECHNICAL SPECIFICATIONS | |
| IPTV MULTICAST/UNICAST OPERATING MODE | More than 20 measurements (including Jitter, Packet rate, Histogram + jitter, Inter Packet Arrival Time). Multicast. T2MI&BTS reception. |
| SD/HD/3G-SDI OPERATING MODE | 3 Gbps input/output. Eye statistical diagram, CRC error detection, 16 AES3 audio channel monitoring, 1080p 60 pattern chart. |
| ASI-TS OPERATING MODE | ASI-TS TS, T2MI and BTS support |
| STREAMING ANALYZER MODE | SRT reception in caller, listener, and rendezvous modes. More than 12 metrics including RTT, latency, NACK packets, and received TS analysis. OTT measurements. |
| INPUTS AND OUPUTS | • ASI/SDI input and output (BNC female, 75 Ω 3 Gbps) • SFP+ connector • HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) • USB 2.0 master/device (Type C). Mass storage and remote control commands • Ethernet (RJ45) for webControl and remote control commands • IPTV input (RJ45 Ethernet, 10/100/1000 Mbps) • Stereo headphone audio output (jack 3.5 mm) • USB 3.0 host (A-type, USB-CDC devices) • CAM (DVB-CI compliant, module input |
| FUNCTIONS | • SMPTE ST2110 measurements (optional) • SRT measurements • 4K decoder • Screenshots • Service recording • Task planner • Signal monitoring • Remote control (webControl) • Video/Audio streaming •TS recording • TS analysis • IPTV multicast: measurement, decoding • Eye diagram (HD-SDI, 3G-SDI) • 8 GB internal memory, expandable via USB • OTT |
| OPTIONS | • Optical SDI and ASI output • Optical SDI and ASI input • ST2110 protocol support |
5 customers are viewing this product
Details
ATLAS IP is a portable IPTV analyzer for broadcast environments with three operating modes: IPTV multicast/unicast, SD/HD/3G-SDI and ASI-TS (with TS, T2MI and BTS support). The omnipresence of IP technology in the broadcast industry makes it compulsory for an analyzer to be capable of feeding from IPTV signals and monitor them. Therefore, it becomes essential to have at hand a tester that can monitor and picture IPTV streams.
Includes the most commonly used codecs in broadcasting, including 10-bit H.265 4K UHD for video and Dolby AC4 for audio.
The 3G-SDI input to run a full 3G-SDI signal diagnosis, including a professional audio meter and eye diagram, and features an external SDI input for that task, other than the standard ASI input and output.
Thanks to SRT protocol support, as well as optional ST 2110 protocol support and communication with network elements such as the master clock, the ATLAS IP helps ensure the correct operation of live broadcast links and studio productions.
The multitouch user interface based on customizable docking pannels ensures an improved user experience, making it simpler than ever to utilize a broadcast analyzer of this nature.
| TECHNICAL SPECIFICATIONS | |
| IPTV MULTICAST/UNICAST OPERATING MODE | More than 20 measurements (including Jitter, Packet rate, Histogram + jitter, Inter Packet Arrival Time). Multicast. T2MI&BTS reception. |
| SD/HD/3G-SDI OPERATING MODE | 3 Gbps input/output. Eye statistical diagram, CRC error detection, 16 AES3 audio channel monitoring, 1080p 60 pattern chart. |
| ASI-TS OPERATING MODE | ASI-TS TS, T2MI and BTS support |
| STREAMING ANALYZER MODE | SRT reception in caller, listener, and rendezvous modes. More than 12 metrics including RTT, latency, NACK packets, and received TS analysis. OTT measurements. |
| INPUTS AND OUPUTS | • ASI/SDI input and output (BNC female, 75 Ω 3 Gbps) • SFP+ connector • HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) • USB 2.0 master/device (Type C). Mass storage and remote control commands • Ethernet (RJ45) for webControl and remote control commands • IPTV input (RJ45 Ethernet, 10/100/1000 Mbps) • Stereo headphone audio output (jack 3.5 mm) • USB 3.0 host (A-type, USB-CDC devices) • CAM (DVB-CI compliant, module input |
| FUNCTIONS | • SMPTE ST2110 measurements (optional) • SRT measurements • 4K decoder • Screenshots • Service recording • Task planner • Signal monitoring • Remote control (webControl) • Video/Audio streaming •TS recording • TS analysis • IPTV multicast: measurement, decoding • Eye diagram (HD-SDI, 3G-SDI) • 8 GB internal memory, expandable via USB • OTT |
| OPTIONS | • Optical SDI and ASI output • Optical SDI and ASI input • ST2110 protocol support |
