PPC Belden

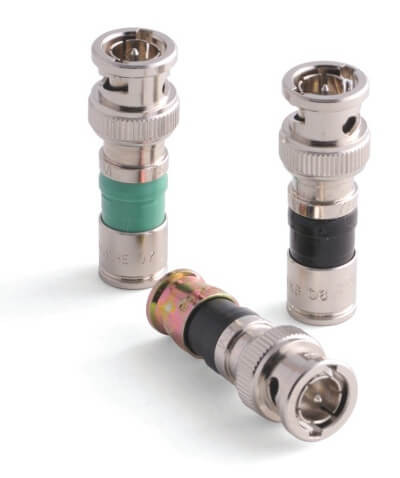

PPC Belden EXBNC9167 Universal BNC Compression Headend Connector
Product Code:
EXBNC9167
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
EX® universal compression connector, BNC, Belden 9167 headend and 59 series 60% through quad shield cables
Installers are often faced with the issue of identifying old, unmarked cables in the field, and having to guess which connectors offer the best match. This causes avoidable service calls resulting from incorrect cable and connector pairings. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets. EXBNC9167 is designed to install with ease on 60% through Quad shield series 59 cables and Belden 9167 headend cable.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 1 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 1 GHz |
| Shielding Effectiveness | -80 dB minimum |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Cable Retention | 50 lb (22.73 kg) minimum |
5 customers are viewing this product
Details
EX® universal compression connector, BNC, Belden 9167 headend and 59 series 60% through quad shield cables
Installers are often faced with the issue of identifying old, unmarked cables in the field, and having to guess which connectors offer the best match. This causes avoidable service calls resulting from incorrect cable and connector pairings. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets. EXBNC9167 is designed to install with ease on 60% through Quad shield series 59 cables and Belden 9167 headend cable.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 1 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 1 GHz |
| Shielding Effectiveness | -80 dB minimum |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Cable Retention | 50 lb (22.73 kg) minimum |
