PPC Belden

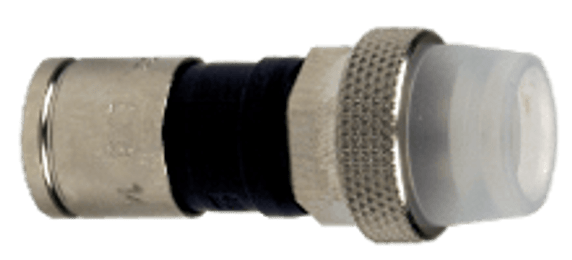

PPC Belden EX6WS AquaTight EX Universal Compression Connector, series 6 cable (50 pcs)
Product Code:
EX6WS
Condition:
New
Weight:
1.00 KGS
$45.71
AquaTight® EX® universal compression connector, series 6 cable
AquaTight® drop connectors introduce an integrated weather seal to PPC’s revolutionary EX® connector design. The unique patented design of the EX body achieves true universality on 60% through Quad Shield, PE, and PVC jacket. The integrated port seal also simplifies outdoor installs, eliminating moisture ingress and protecting the subscriber experience. Moisture migration in the RF path degrades signal quality, creates ingress/egress and often results in costly service calls. Standalone port seals are often overlooked or improperly installed, resulting in a major operational and capital burden. This AquaTight solution guarantees the proper use of a port seal every time, locking the moisture out.
Package includes: 50 pieces of connectors.
| Product Specifications | |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss (Gated) | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
5 customers are viewing this product
Details
AquaTight® EX® universal compression connector, series 6 cable
AquaTight® drop connectors introduce an integrated weather seal to PPC’s revolutionary EX® connector design. The unique patented design of the EX body achieves true universality on 60% through Quad Shield, PE, and PVC jacket. The integrated port seal also simplifies outdoor installs, eliminating moisture ingress and protecting the subscriber experience. Moisture migration in the RF path degrades signal quality, creates ingress/egress and often results in costly service calls. Standalone port seals are often overlooked or improperly installed, resulting in a major operational and capital burden. This AquaTight solution guarantees the proper use of a port seal every time, locking the moisture out.
Package includes: 50 pieces of connectors.
| Product Specifications | |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss (Gated) | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
