PPC Belden

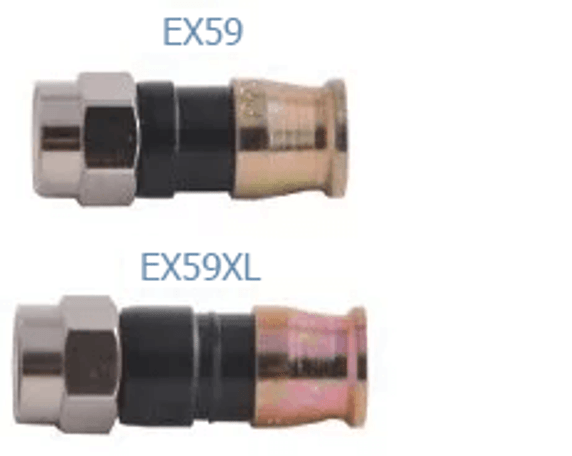

PPC Belden EX59 RG59 Universal Compression Connector (50 pcs)
Product Code:
EX59
Condition:
New
Weight:
1.00 KGS
$26.43
EX® universal compression connector, extended body, series 59 cable
Installers are often faced with the issue of identifying old, unmarked 60% through Quad Shield Series cables in the field, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of wrong cable and connector combinations. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets.
Package includes: 50 pieces of connectors.
| Electrical Specifications | |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss (Gated) | |
| 5 to 1,000 MHz | -30 dB Minimum |
| 1,000 to 2,000 MHz | -30 dB Minimum |
| 2,000 to 3,000 MHz | -20 dB Minimum |
| Insertion Loss | Less than .20 dB |
| 5 to 3,000 MHz | |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
5 customers are viewing this product
Details
EX® universal compression connector, extended body, series 59 cable
Installers are often faced with the issue of identifying old, unmarked 60% through Quad Shield Series cables in the field, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of wrong cable and connector combinations. Through a unique, patented body design, the EX® connector series achieves true universality on 60% through Quad Shield cable for PE and PVC jackets.
Package includes: 50 pieces of connectors.
| Electrical Specifications | |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss (Gated) | |
| 5 to 1,000 MHz | -30 dB Minimum |
| 1,000 to 2,000 MHz | -30 dB Minimum |
| 2,000 to 3,000 MHz | -20 dB Minimum |
| Insertion Loss | Less than .20 dB |
| 5 to 3,000 MHz | |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
