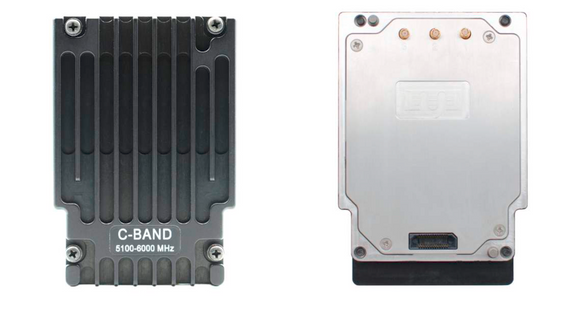

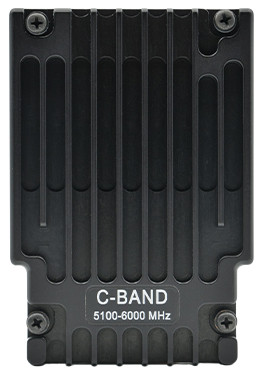

Persistent Systems RF-5100 Upper C-Band RF Module
Product Code:
RF-5100
Condition:
New
Weight:
0.14 KGS
Width:
9.70
(cm)
Height:
6.60
(cm)
Depth:
1.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Persistent’s Upper C-Band Interchangeable Frequency Modules are ideal for use by commercial customers in the unlicensed ISM (5.1 – 6 GHz) band.
Additionally, the Upper C-Band module has FCC Part 15 and Japan Type certifications.
| TECHNICAL SPECIFICATION | |
| Frequency Range | 5100 - 5945 MHz |
| RF Modulation | OFDM (64QAM, 16QAM, QPSK) |
| Antenna Chains | 3 Independent RF Chains |
| TX/RX Operating Modes | All MIMO modes from SISO to 3×3 |
| Channel Bandwidth | 5, 10, and 20 MHz Software Configurable |
| Peak TCP Throughput | 150 Mbps at 20 MHz Channel |
| MIMO Techniques | Maximal Ratio Combining Space-Time Block Coding Spatial Multiplexing" |
| Max. Aggregate Transmit Power | 4W (1.3W per RF Chain) |
| Antenna Ports | (3) SMP (50 Ohms) |
| TX Power Control | 31 to 16.5 dBm, 0.5 dB per step |
| Power Control Accuracy | +/- 2 dB |
| Frequency Accuracy | +/- 4 ppm, max. |
| Minimum Receiver Sensitivity | -94 dBm at 5 MHz bandwidth, QPSK |
| Max. RF Input | -10 dBm, min. |
| Max. RF Input without Damage | +10 dBm, min. |
| Max. Peak Power Consumption, TX | 50W |
| Power Consumption, RX | 2.5W |
| Operating Temperature | -40°C to +85°C |
| ESD Protection | +/- 8KV Contact discharge, per IEC 6100-4-2 |
| Dimensions | 3.8 x 2.6 x 0.5 in. 9.7 x 6.6 x 1.3 cm |
| Weight | 4.8 oz. 136 g |
5 customers are viewing this product
Details
Persistent’s Upper C-Band Interchangeable Frequency Modules are ideal for use by commercial customers in the unlicensed ISM (5.1 – 6 GHz) band.
Additionally, the Upper C-Band module has FCC Part 15 and Japan Type certifications.
| TECHNICAL SPECIFICATION | |
| Frequency Range | 5100 - 5945 MHz |
| RF Modulation | OFDM (64QAM, 16QAM, QPSK) |
| Antenna Chains | 3 Independent RF Chains |
| TX/RX Operating Modes | All MIMO modes from SISO to 3×3 |
| Channel Bandwidth | 5, 10, and 20 MHz Software Configurable |
| Peak TCP Throughput | 150 Mbps at 20 MHz Channel |
| MIMO Techniques | Maximal Ratio Combining Space-Time Block Coding Spatial Multiplexing" |
| Max. Aggregate Transmit Power | 4W (1.3W per RF Chain) |
| Antenna Ports | (3) SMP (50 Ohms) |
| TX Power Control | 31 to 16.5 dBm, 0.5 dB per step |
| Power Control Accuracy | +/- 2 dB |
| Frequency Accuracy | +/- 4 ppm, max. |
| Minimum Receiver Sensitivity | -94 dBm at 5 MHz bandwidth, QPSK |
| Max. RF Input | -10 dBm, min. |
| Max. RF Input without Damage | +10 dBm, min. |
| Max. Peak Power Consumption, TX | 50W |
| Power Consumption, RX | 2.5W |
| Operating Temperature | -40°C to +85°C |
| ESD Protection | +/- 8KV Contact discharge, per IEC 6100-4-2 |
| Dimensions | 3.8 x 2.6 x 0.5 in. 9.7 x 6.6 x 1.3 cm |
| Weight | 4.8 oz. 136 g |
