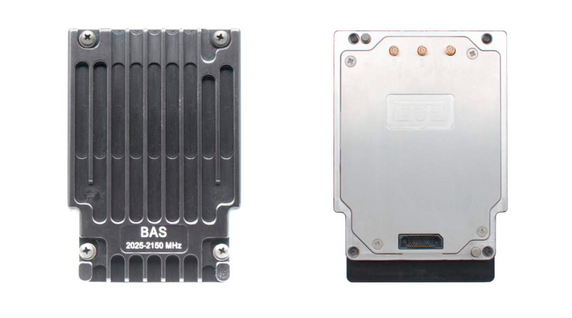

Persistent Systems RF-2125 BAS RF Module
Product Code:
RF-2125
Condition:
New
Weight:
0.14 KGS
Width:
9.70
(cm)
Height:
6.60
(cm)
Depth:
1.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Persistent’s BAS Band Interchangeable Frequency Module is designed for use by TV and radio stations in applications such as live event video streaming and electronic newsgathering.
The BAS Band module allows broadcasters to use their licensed spectrum without monthly fees.
| TECHNICAL SPECIFICATION | |
| Frequency Range | 2025 – 2145 MHz |
| RF Modulation | OFDM (64QAM, 16QAM, QPSK) |
| Antenna Chains | 3 Independent RF Chains |
| TX/RX Operating Modes | All MIMO modes from SISO to 3×3 |
| Channel Bandwidth | 5, 10, and 20 MHz Software Configurable |
| Peak TCP Throughput | 150 Mbps at 20 MHz Channel |
| MIMO Techniques | Maximal Ratio Combining Space-Time Block Coding Spatial Multiplexing" |
| Max. Aggregate Transmit Power | 6W (2W per RF Chain) |
| Antenna Ports | (3) SMP (50 Ohms) |
| TX Power Control | 33 to 16.5 dBm, 0.5 dB per step |
| Power Control Accuracy | +/- 2 dB |
| Frequency Accuracy | +/- 4 ppm, max. |
| Minimum Receiver Sensitivity | -93 dBm at 5 MHz bandwidth, QPSK |
| Max. RF Input | -5 dBm, min. |
| Max. RF Input without Damage | +10 dBm, min. |
| Max. Peak Power Consumption, TX | 30.8W |
| Power Consumption, RX | 4W |
| Operating Temperature | -40°C to +85°C |
| ESD Protection | +/- 8KV Contact discharge, per IEC 6100-4-2 +/-15KV Air discharge, per IEC 61000-4-2 |
| Dimensions | 3.8 x 2.6 x 0.5 in. 9.7 x 6.6 x 1.3 cm |
| Weight | 4.7 oz. 133 g |
