PEPLINK

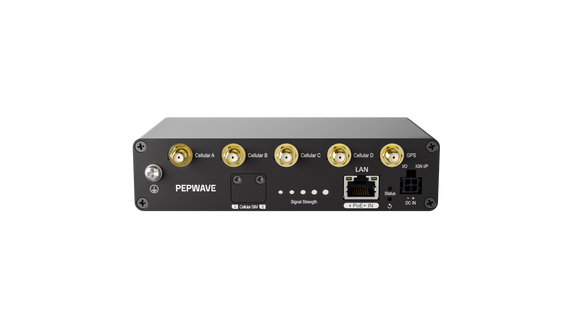

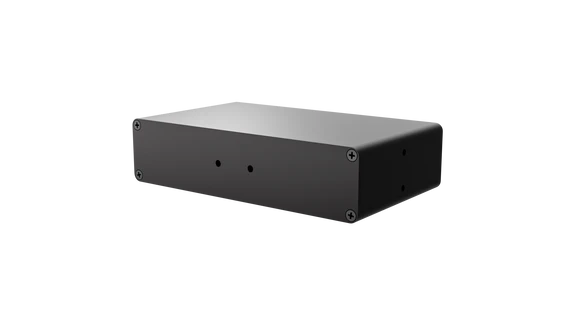

PEPWAVE 5G Adapter
Product Code:
ADP-5GY-T-PRM
Condition:
New
Weight:
0.39 KGS
Width:
8.00
(cm)
Height:
13.82
(cm)
Depth:
3.35
(cm)
$399.00
Deploy faster, scale easier, and eliminate complexity from day one, whether you’re building smart infrastructure or managing an industrial IoT rollout.
Meet the 5G Adapter, your plug-and-play solution for both public and private 5G networks.
Why it’s the right fit:
- Instant Provisioning: Pre-loaded 1GB Peplink global eSIM data for immediate setup and eSIM profile downloads.
- Remote Management: Monitor and troubleshoot via InControl and InTouch, enjoying full visibility without the costly site visits.
- Zero Carrier Lock-in: Dual physical SIMs, eSIM, and RemoteSIM support give you flexibility to choose the best network for any location.
- Versatile Deployment: Rugged hardware with GPS and ignition sensing for telemetry, field operations, and fleet deployments.
| SPECIFICATIONS | |
| Cellular WAN Interface | Single 5G Modem |
| Cellular Data Rate¹ (Downlink/Uplink) |
5G: 3.4 Gbps / 550 Mbps CAT-19: 1.6 Gbps / 200 Mbps |
| LAN Interface | 1x 10/100/1000/2500M RJ45 Ethernet |
| Redundant SIM Slot | Yes |
| Antenna Connectors | 4x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V–240V / DC Output 12V Micro-fit connector with 10-30VDC input Power over Ethernet 802.3at |
| Power Consumption | 6.5W (nominal), 12W (max.) |
| Dimension | 5.4 x 3.1 x 1.3 inches / 138.2 x 80 x 33.5 mm |
| Weight | 0.86 pounds / 390 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Package Content | 1x 5G Adapter 1x 12V 2A 4 Pin Power Supply 4x LTE/5G Antennas (ACW-235) 1x GPS Active Antenna |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
5 customers are viewing this product
Details
Deploy faster, scale easier, and eliminate complexity from day one, whether you’re building smart infrastructure or managing an industrial IoT rollout.
Meet the 5G Adapter, your plug-and-play solution for both public and private 5G networks.
Why it’s the right fit:
- Instant Provisioning: Pre-loaded 1GB Peplink global eSIM data for immediate setup and eSIM profile downloads.
- Remote Management: Monitor and troubleshoot via InControl and InTouch, enjoying full visibility without the costly site visits.
- Zero Carrier Lock-in: Dual physical SIMs, eSIM, and RemoteSIM support give you flexibility to choose the best network for any location.
- Versatile Deployment: Rugged hardware with GPS and ignition sensing for telemetry, field operations, and fleet deployments.
| SPECIFICATIONS | |
| Cellular WAN Interface | Single 5G Modem |
| Cellular Data Rate¹ (Downlink/Uplink) |
5G: 3.4 Gbps / 550 Mbps CAT-19: 1.6 Gbps / 200 Mbps |
| LAN Interface | 1x 10/100/1000/2500M RJ45 Ethernet |
| Redundant SIM Slot | Yes |
| Antenna Connectors | 4x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V–240V / DC Output 12V Micro-fit connector with 10-30VDC input Power over Ethernet 802.3at |
| Power Consumption | 6.5W (nominal), 12W (max.) |
| Dimension | 5.4 x 3.1 x 1.3 inches / 138.2 x 80 x 33.5 mm |
| Weight | 0.86 pounds / 390 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Package Content | 1x 5G Adapter 1x 12V 2A 4 Pin Power Supply 4x LTE/5G Antennas (ACW-235) 1x GPS Active Antenna |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
Download
| Download Name | |
| PEPLINK 5G Adapter Datasheet | |
