PEPLINK

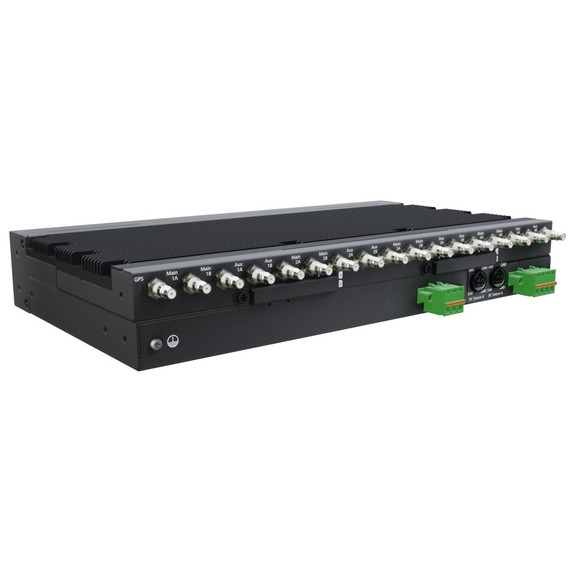

Peplink MAX-HD4-MBX-5GK-T 5G Quad Cellular Mobile Powerhouse
Product Code:
MAX-HD4-MBX-5GK-T
Weight:
3.30 KGS
Width:
29.20
(cm)
Height:
4.20
(cm)
Depth:
17.70
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
HD4 MBX Multi-Cellular Gigabit LTE Mobile Powerhouse
Unbreakable High-Speed Connectivity
The HD2/HD4 MBX is designed to provide unparalleled connectivity by combining the bandwidth of 2 or 4 cellular links into a robust SD-WAN connection. It supports up to 8 SIM cards, with the option to expand to 16 using an external SIM Injector, ensuring seamless network coverage even in remote locations. By leveraging multiple carriers, users can eliminate spotty coverage and maintain a stable connection at all times.
Ready for Any Environment
Fanless Design
Built for high-particle environments, the HD4 MBX operates without fans, making it ideal for deployment in industrial settings where dust and debris can compromise fan-based routers.
8×802.3at PoE Outputs
The device features 8 Power over Ethernet (PoE) outputs, allowing users to power IP phones, security cameras, and access points directly from the router, reducing the need for additional power sources.
Robust Metal Enclosure
With dimensions identical to the previous HD4 model, the HD4 MBX seamlessly integrates into existing deployments without requiring structural modifications. The HD4 MBX is certified for use with major carriers, including Verizon and T-Mobile, ensuring broad network compatibility. Verizon certification is currently in progress for the MAX-HD2-MBX-5GH-T model.
Ignition Sensing Technology
The HD4 MBX is designed for mobile use, featuring ignition sensing capabilities that allow it to power on and off in sync with a vehicle’s engine. Users can set a shutdown delay to prevent unnecessary battery drainage when the vehicle is off.
Expanded Connectivity with SIM Injector
The optional SIM Injector enables users to connect up to 16 cellular providers, mitigating weak coverage areas and preventing roaming charges when crossing national borders. The HD4 MBX supports FirstNet (Band 14), a specialized LTE network for first responders, providing priority access and enhanced capacity during emergencies. Additionally, it is certified by the UK’s Emergency Services Network (ESN), ensuring reliability for critical communication applications.
5G-Ready with Swappable Cellular Module
Out of the box, the HD4 MBX supports Gigabit LTE, but its modular design allows for easy upgrades to 5G by swapping out the cellular module. With a 2.5Gbps throughput, the device is well-equipped to handle future networking advancements.
Pair with the 5G-Ready Outdoor Antenna
For enhanced coverage, the HD4 MBX can be paired with a 5G-ready outdoor antenna. This antenna supports extensive 5G global cellular frequencies, including Band 71, making it ideal for public safety, mobile healthcare, and transportation applications.
SpeedFusion™: Speed & Reliability
The HD4 MBX leverages SpeedFusion™ technology to combine multiple connections into a single, ultra-fast data link. Key features include:
- Bandwidth Bonding: Merges multiple mobile connections to maximize throughput.
- Hot Failover: Instantly reroutes traffic to an active WAN link if one fails, ensuring uninterrupted VoIP and video streaming.
- WAN Smoothing: Dynamically selects the WAN connection with the lowest latency, reducing jitter and enhancing performance.
By utilizing SpeedFusion™, users can avoid network blind spots and congestion, ensuring seamless connectivity across various locations.
Use Cases: Versatile Deployment
The HD4 MBX is a versatile networking powerhouse, ideal for:
- Mobile command centers
- Emergency response teams
- Remote office connectivity
- Smart transportation solutions
- Industrial IoT applications
SpeedFusion Connect: On-Demand Connectivity
With SpeedFusion Connect, enabling SpeedFusion capabilities has never been easier. This subscription-based service allows users to leverage LTE connections and SpeedFusion technologies for seamless backup connectivity.
Ports and Connections
The HD4 MBX is equipped with a range of ports to facilitate network expansion and connectivity:
- Multiple Gigabit Ethernet ports
- WAN and LAN interfaces for flexible deployments
- Support for PoE-powered devices
For businesses and organizations requiring fast, reliable, and resilient mobile connectivity, the HD4 MBX is the ultimate solution. Its combination of multi-carrier support, advanced networking technologies, and future-proof design ensures long-term performance in any environment.
MAX HD4 MBX 5G Package Content
- MAX HD4 MBX
- 1x PSU 180W (ACW-630)
- 1x QMA to SMA Adaptor (for GPS)
- 1x GPS Antenna (ACW-232)
- 1 Pair of Mounting Brackets (ACW-513)
- 4x Wi-Fi Dual Band Antenna (ACW-341)
- 3pin Terminal Block Connector (Ignition sense)
- 4pin Terminal Block Connector (Power supply)
- Grounding cable
- Rubber Foot Pad set
* Cellular antennas not included. To enhance the MBX, Mobility and Maritime antennas are recommended.
| Feature | Specification |
| WAN Interface | 3x 10/100/1000M Ethernet |
| LAN Interface | 9x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 5, 2x2 MIMO, Wi-Fi WAN and/or AP |
| SpeedFusion Features | Hot Failover, Smoothing, Bandwidth Bonding |
| SpeedFusion VPN Peers | мар.20 |
| Router Throughput | 2.5Gbps |
| SpeedFusion Throughput (No Encryption) | 600 Mbps |
| SpeedFusion Throughput (256-bit AES) | 500 Mbps |
| Recommended Users | 50-500 |
| Cellular Data Rate (Downlink / Uplink) | 5G: 4.1 Gbps / 900 Mbps |
| CAT-20: 2 Gbps / 211 Mbps | |
| Antenna Connectors |
16x QMA Cellular Antenna Connectors 4x RP-SMA Wi-Fi Antenna Connectors 1x QMA GPS Antenna Connector |
| Power Consumption | 55W (max.) |
| Dimensions | 1.7 x 11.5 x 7.0 inches / 43 x 292 x 177 mm |
| Weight | 7.28 pounds / 3.3 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS, E-Mark, EN61373 Shock and Vibration Resistance, EN50155 Railway Applications, EN61000 Electromagnetic Compatibility |
| SIM Options | Mini-SIM (2FF), Peplink eSIM, BYO eSIM (2 profiles), Remote SIM from SIM Injector, FusionSIM |
| Warranty | 1-Year Limited Warranty |
| Power Input | Power Port: 12V – 56V DC |
| AC Adapter: AC Input 100V–240V / DC Output 12V | |
| Terminal Block: 12V – 56V DC |
