Peplink ANT-MAX-S 7:1 Enclosure for Starlink Mini & Peplink Routers - 5G, WiFi, GPS

Peplink ANT-MAX-S 7:1 All-in-One Antenna, Starlink Mini, & Router Enclosure, IP67

The ANT-MAX-S is a powerful and versatile solution that solves it all by acting as a docking station that brings Starlink Mini and Peplink together in one rugged, all-in-one enclosure. One connection delivers both satellite and cellular. There are no extra cables and no new holes. It's just a streamlined, high-performance install. With built-in 4x 5G/LTE, Wi-Fi, and GPS antennas, whether you’re adding 5G to an existing Starlink Mini deployment or building both in from the start, Antenna MAX S keeps your install clean, fast, and ready for anywhere your network needs to go.

With an IP67 rating the Antenna MAX S is engineered for outdoor longevity, built with UV- and salt-resistant plastics, fitted with a metal base for heat dissipation, and designed to to withstand high wind loads for fixed or mobile applications.

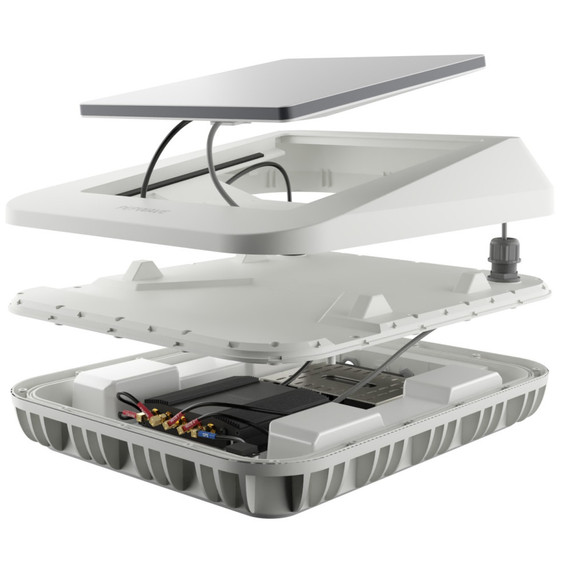

The ANT-MAX-S is "Convenience to the MAX". Supporting both Power over Ethernet (PoE) and DC input, the Antenna MAX S gives you flexibility in how you deploy. Use the top cover’s watertight clasp system to conveniently secure the Peplink router of your choice: BR1 Mini Series, Transit Duo Pro, BR1 Pro 5G, or BR1 Pro CAT20. Mount it your way with a variety of installation options ideal for vehicles, rooftops, poles, or even custom rack systems.

The ANT-MAX-S delivers an all-in-one Starlink and cellular solution at a price that makes sense for businesses, fleets, and integrators alike. Whether you're operating from a remote location, working in an RV, or maintaining mission-critical connections on the move, it saves time, space, and cost - without compromising performance.

Key Features of the ANT-MAX-S

• Omnidirectional 4x4 MIMO 5G LTE, MIMO WiFi, and GPS antenna
• 4x4 MIMO 5G LTE with 617 - 6000 MHz frequency range
• MIMO WiFi with 2.4 - 2.5 and 5.0 - 6.0 GHz frequency range
• GPS with 1575 - 1602 MHz frequency range
• UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion
• Up to 7.4dB gain
• Compatible with many routers
• Surface, magnetic, pole, or deck mount
• 10 W maximum power rating
• -40º to 80º C Operating Temperature
• Right angle SMA (M) and RP-SMA (M) connectors

 Included in the Box

• Antenna MAX S; L-Mount Set
• Power supply/splitter mounting set
• Router fixation screws
• 3 x M25 cable glands
• 1 x M25 hole plug
• 2 x RJ45 glands
• 2 x RJ45 caps
• 2 x Hole plug
• 1 x DC Cable Connector
• 1 x Starlink power cable (35.4” / 900 mm)
• 1 x Starlink Ethernet cable (35.4” / 900 mm)
• 1 x Double sided 3M adhesive pad
• 1 x Ethernet cable (7.87 ” / 200 mm)
• 1 x DC cable (3.93” / 100 mm)
