Paradigm
Paradigm RAGNO Multiband Satellite Terminal
Product Code:
RAGNO950
Condition:
New
Weight:
7.50 KGS
Width:
51.00
(cm)
Height:
10.00
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

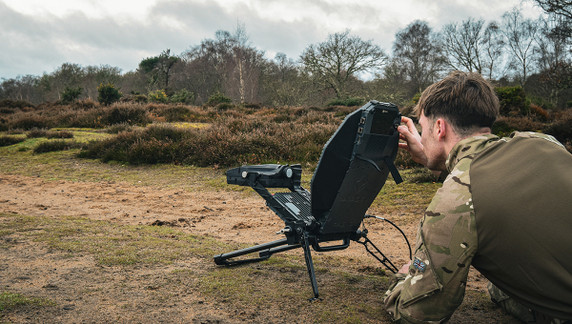

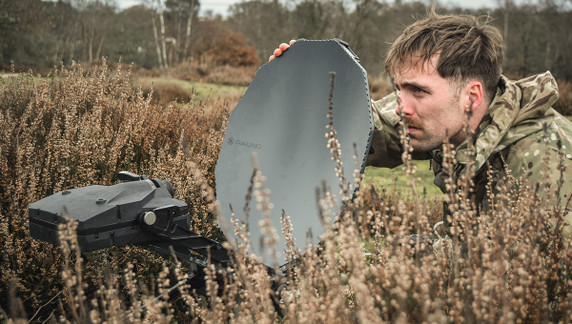

The RAGNO is an ultra-portable, multiband terminal that is compact, rugged, and easy to use, powered by the intelligent Paradigm Interface Module (PIM®). It operates with field-changeable Mil-Ka/Ka- and Ku-band RF cartridges, enabling access to Intelsat’s high-throughput FlexMove for Government satellite services. The RAGNO’s single-piece parabolic reflector delivers exceptional SWaP performance in a discreet, lightweight design suited for fast deployment in mission-critical environments.
The integrated RF cartridge consolidates the BUC, LNB, feed, and waveguide components into a single, swappable unit—allowing rapid, tool-free transition between RF bands without technical expertise. It can be set up and on air in under two minutes, aided by the AI-assisted pointing capabilities of the ruggedized PIM touchscreen or glove-operated control pad.
With FIPS 140-2 Level 3 TRANSEC, IP67 ingress protection, and compliance with MIL-STD-810G, the RAGNO is purpose-built for reliability and performance in the most demanding tactical and emergency response scenarios.
RAGNO Multiband Satellite Terminal Features:
- Rapid tool-free setup, on air <2 minutes
- Simple AI-assisted terminal pointing
- Unrivalled SWaP vs performance
- Ruggedized to MIL-STD
- FIPS 140-2 Level 3 TRANSEC security
- Field-changeable RF heads: – Mil-Ka/Ka- and Ku-band & BUC options
- Low power consumption
- Wide range of power input options
- IATA-compliant single backpack/case
- On-board Spectrum Analyzer
- SD/Multi Orbit WAN Functionality
| SPECIFICATIONS | |
| REFLECTOR SIZE | 400 mm (single piece) |
| POSITIONER | Assisted manual-adjust pointing |
| ON-AIR TIME | Under 2 minutes |
| PIM INTERFACE | Touchscreen (glove-compatible), built-in spectrum analyzer |
| PERFORMANCE | |
| FREQUENCY RANGE (GHZ) | |
| MIL-KA / KA-BAND | • Rx: 19.2 – 21.2 GHz; • Tx: 29.0 – 31.0 GHz; • Polarization: Circular (RH or LH) |
| KU-BAND | • Rx: 10.70 – 12.75 GHz; • Tx: 13.75 – 14.50 GHz; • Polarization: Linear |
| EIRP | Ka-band: 51.55 dBW Ku-band: 47.6 dBW |
| G/T | Ka-band: 15 dB/K Ku-band: 13.5 dB/K |
| POWER | |
| INPUT OPTIONS | 12–36VDC; 110–240VAC to 24VDC; Battery (BB2590) and vehicle DC cable options |
| INTERFACES | |
| NETWORK INTERFACE | • 2 x Ethernet (RJ45) – 10/100/1000 Mbps, full duplex; • Wi-Fi (configurable for M&C and/or data); • USB-C |
| MODEM OPTIONS | • iDirect 950mp; • Supports all major modem types |
| SECURITY | FIPS 140-2 Level 3 TRANSEC and antitamper locking |
| COMPLIANCE | FCC 25.138, 25.209, 25.218, 25.222; ITU-R.S.728, ITU-R.S.524; CFR47, 164C; Compatible with all major satellite constellations |
| ENVIRONMENTAL | |
| OPERATING TEMPTERATURE | -32°C to +55°C (-25.6°F to 131°F) |
| HUMIDITY | 0 to 95% (condensing) |
| INGRESS PROTECTION | IP67 |
| MIL-STD-810G COMPLIANCE | Vibration, shock, salt, fog, sand/dust, humidity, driving rain |
| MECHANICAL | |
| AZIMUTH ADJUSTMENT | 360° continuous (via rotation) |
| ELEVATION ADJUSTMENT | • Coarse: 0° to 90°; • Fine: 0° to 45° |
| DIMENSIONS & WEIGHT | • Weight: 7.5 kg (16.5 lb.); • Stowed Dimensions: 510 x 400 x 100 mm (20” x 15.5” x 4”) |
