Orbit-CS

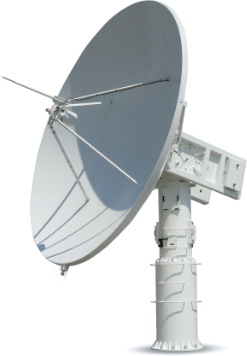

Orbit-CS AL-4900 Tracking Antenna System
Product Code:
AL-4900
Condition:
New
Weight:
11,500.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
AL-4800 series systems constitute a self-contained elevation-over-azimuth tracking solution for L/S/C-band links providing high performance under the most demanding operational conditions.
The system (7.0m-11.0m reflector) may be ground-based, transportable, and even shipboard (with additional stabilization) for applications such as satellite imaging, high-altitude flight tests or long-range missile tracking.
Furthermore, tracking antennas can be provided in a variety of configurations tailored to meet a broad range of field requirements, including: different frequency ranges; various linear and circular polarization combinations; interference rejection filtering; additional uplink (transmit) paths; segmented reflectors to facilitate transportation.
Key Features
- Parabolic reflector antenna
- Mono-pulse/E-scan/Conical Scan auto-track feed
- Acquisition-aid antenna (option)
- Integrated LNAs & filters
- EL over AZ axes configuration (optional stabilization)
- Cable wrap or continuous rotation (slip ring / rotary joint)
- Digital servo drive
- Brushless motor and planetary gear assembly
- High dynamics, high accuracy, low backlash (dual drive configuration provides “ZERO” backlash)
- Robust, reliable, environmentally durable
- Modular & easily maintainable
5 customers are viewing this product
Details
AL-4800 series systems constitute a self-contained elevation-over-azimuth tracking solution for L/S/C-band links providing high performance under the most demanding operational conditions.
The system (7.0m-11.0m reflector) may be ground-based, transportable, and even shipboard (with additional stabilization) for applications such as satellite imaging, high-altitude flight tests or long-range missile tracking.
Furthermore, tracking antennas can be provided in a variety of configurations tailored to meet a broad range of field requirements, including: different frequency ranges; various linear and circular polarization combinations; interference rejection filtering; additional uplink (transmit) paths; segmented reflectors to facilitate transportation.
Key Features
- Parabolic reflector antenna
- Mono-pulse/E-scan/Conical Scan auto-track feed
- Acquisition-aid antenna (option)
- Integrated LNAs & filters
- EL over AZ axes configuration (optional stabilization)
- Cable wrap or continuous rotation (slip ring / rotary joint)
- Digital servo drive
- Brushless motor and planetary gear assembly
- High dynamics, high accuracy, low backlash (dual drive configuration provides “ZERO” backlash)
- Robust, reliable, environmentally durable
- Modular & easily maintainable
