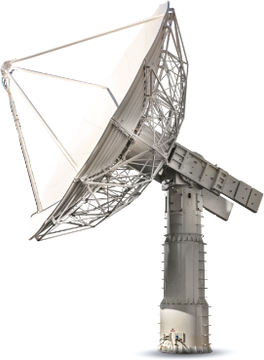

Orbit-CS AL-1800 Tracking Antenna System
Product Code:
AL-1800
Condition:
New
Weight:
700.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
AL-1800 series systems constitute a self-contained elevation-over-azimuth tracking solution (single/dual drive) for L/S/C-band links providing high performance under the most demanding operational conditions.
This flexible system (2.0m-3.7m reflector) may be ground-based, transportable, or shipboard (with additional stabilization) and can serve a wide range of medium range applications such as UAV command and control, flight test for aircraft and missile telemetry.
Furthermore, tracking antennas can be provided in a variety of configurations tailored to meet a broad range of field requirements, including: different frequency ranges; various linear and circular polarization combinations; interference rejection filtering; additional uplink (transmit) paths; segmented reflectors to facilitate transportation.
Key Features
- Parabolic reflector antenna
- Mono-pulse/E-scan/Conical Scan auto-track feed
- Acquisition-aid antenna (option)
- Integrated LNAs & filters
- EL over AZ axes configuration (optional stabilization)
- Cable wrap or continuous rotation (slip ring / rotary joint)
- Digital servo drive
- Brushless motor and planetary gear assembly
- High dynamics, high accuracy, low backlash (dual drive configuration provides “ZERO” backlash)
- Robust, reliable, environmentally durable
- Modular & easily maintainable
