Norsat International Inc.
Norsat XT1000N 1000 X-Band Single Band EXT REF LNB
Product Code:
XT1000N
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.60 KGS
Width:
7.00
(cm)
Height:
5.90
(cm)
Depth:
13.70
(cm)
$2,040.00
| KEY SPECIFICATIONS | |
| Band | X-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 7.25 - 7.75 GHz |
| LO Frequency 1 | 6.30 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 0.8 dB |
| Noise Figure Typ | 0.7 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise (SSB) Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-connector 50 Ohm (waterproof) |
| RF Input Connector | WR-112 waveguide grooved (waterproof) |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |

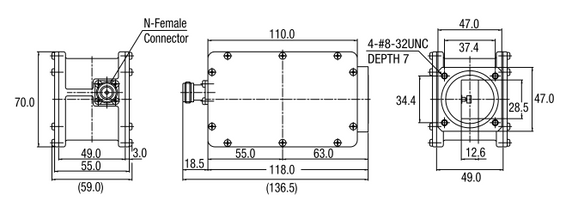

| PHYSICAL SPECIFICATIONS | |
| Product Height | 59 mm |
| Product Length | 137 mm |
| Product Weight | 0.6 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.45 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.125 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 59 mm |
| Package Length Case 1 | 137 mm |
| Package Width Case 1 | 70 mm |
| Unit Package Dimensions | 137 x 70 x 59 mm |
| Warranty | 3 years |
